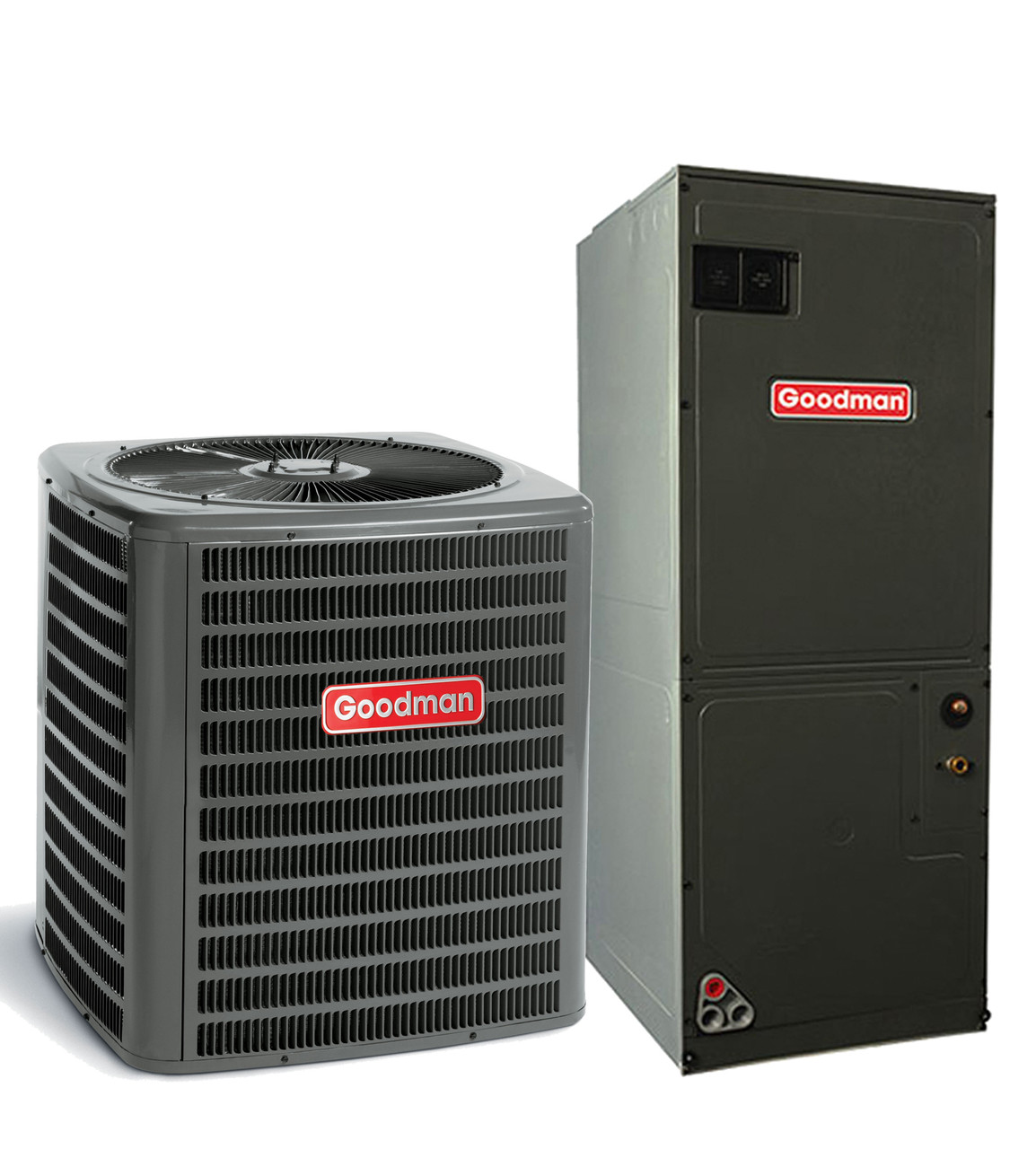

5 Ton Goodman 14.5 SEER2 R32 Heat Pump System GLZS4BA6010, AMST60DU1300
Original price was: $6,560.00.$656.99Current price is: $656.99.
| Category | US | EU | UK | Chest (in) | Waist (in) | Hips (in) |
|---|---|---|---|---|---|---|
| Men | XS | 44 | 34 | 32-34 | 26-28 | 33-35 |
| S | 46 | 36 | 34-36 | 28-30 | 35-37 | |
| M | 48 | 38 | 38-40 | 32-34 | 39-41 | |
| L | 50 | 40 | 42-44 | 36-38 | 43-45 | |
| XL | 52 | 42 | 46-48 | 40-42 | 47-49 | |
| Women | XS | 32 | 6 | 31-32 | 24-25 | 33-34 |
| S | 34 | 8 | 33-34 | 26-27 | 35-36 | |
| M | 36 | 10 | 35-36 | 28-29 | 37-38 | |
| L | 38-40 | 12-14 | 37-39 | 30-32 | 39-41 | |
| XL | 42 | 16 | 40-42 | 33-35 | 42-44 | |
| Youth | XS | 128 | 7 | 26-28 | 23-24 | 26-28 |
| S | 134 | 8 | 28-30 | 24-25 | 28-30 | |
| M | 140 | 10 | 30-32 | 25-26 | 30-32 | |
| L | 146 | 12 | 32-34 | 26-27 | 32-34 | |
| XL | 152 | 14 | 34-36 | 27-28 | 34-36 |
| Category | US | EU | UK | Waist (in) | Hip (in) | Inseam (in) |
|---|---|---|---|---|---|---|
| Men | 28 | 44 | 28 | 28 | 34 | 30 |
| 30 | 46 | 30 | 30 | 36 | 31 | |
| 32 | 48 | 32 | 32 | 38 | 32 | |
| 34 | 50 | 34 | 34 | 40 | 33 | |
| 36 | 52 | 36 | 36 | 42 | 34 | |
| Women | 0 | 32 | 4 | 24 | 34 | 30 |
| 2 | 34 | 6 | 25 | 35 | 30 | |
| 4 | 36 | 8 | 26 | 36 | 31 | |
| 6 | 38 | 10 | 27 | 38 | 32 | |
| 8 | 40 | 12 | 28 | 40 | 32 |
| Category | US | EU | UK | Foot Length (in) |
|---|---|---|---|---|
| Men | 6 | 39 | 5.5 | 9.25 |
| 7 | 40 | 6.5 | 9.625 | |
| 8 | 41 | 7.5 | 10 | |
| 9 | 42 | 8.5 | 10.25 | |
| 10 | 43 | 9.5 | 10.625 | |
| 11 | 44 | 10.5 | 11 | |
| 12 | 45 | 11.5 | 11.25 | |
| 13 | 46 | 12.5 | 11.625 | |
| Women | 5 | 35 | 2.5 | 8.5 |
| 6 | 36 | 3.5 | 8.875 | |
| 7 | 37 | 4.5 | 9.25 | |
| 8 | 38 | 5.5 | 9.625 | |
| 9 | 39 | 6.5 | 10 | |
| 10 | 40 | 7.5 | 10.25 | |
| 11 | 41 | 8.5 | 10.625 | |
| 12 | 42 | 9.5 | 11 | |
| M (Unisex) | 5 | 37 | 4.5 | 8.75 |
| 6 | 38 | 5.5 | 9 | |
| 7 | 39 | 6.5 | 9.5 | |
| 8 | 40 | 7.5 | 10 | |
| 9 | 41 | 8.5 | 10.25 | |
| 10 | 42 | 9.5 | 10.625 | |
| 11 | 43 | 10.5 | 11 | |
| 12 | 44 | 11.5 | 11.25 |
R32 Refrigerant
GLZS4B Condenser Features
? High-efficiency compressor
. SmartShift technology to ensure quiet reliable defrost
. Enhanced aluminum fin coil- 5 mm diameter on 1.5T-3.5 Ton
. Enhanced aluminum fin coil with 7mm diameter copper tubes in 4.0- to 5.0-ton
. Single-speed PSC condenser fan motor
. Factory-installed bi-flow liquid-line filter drier
. Factory-installed suction-line accumulator
. Factory-installed compressor crankcase heater
. Factory-installed high-capacity muffler
. High- and low-pressure switches
. Service valves with sweat connections and easy access to gauge ports
. Fully charged for 15? of tubing length
. Fully enclosed contactor with lug connection
. Ground lug connection
. Capacitors with extended life
. AHRI Certified; ETL Listed
. Steel louver coil guard
. Heavy-gauge galvanized-steel cabinet
. Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
. Top and side maintenance access
.When properly anchored, meets the 2023 Florida Building Code unitintegrity requirements for hurricane-type winds (Anchor bracket kitsavailable.)
AMST Air Handler Features
. Internal factory-installed thermal expansion valves for cooling and heat pump applications
. Direct drive, multi-speed ECM blower motor
. All-aluminum evaporator coil
. Coil mounting track for quick repositioning
. Optimized for use with R-32 refrigerant
. Cabinet air leakage less than 2.0% at 1.0 inch H2O when tested in accordance with ASHRAE standard 193
. Cabinet air leakage less than 1.4% at 0.5 inch H2O when tested in accordance with ASHRAE standard 193
. AHRI certified; ETL listed
. UL 60335 2-40 Compliant
. Factory installed R32 sensor designed for lifespan of coil
. Rigid SmartFrame cabinet
. Horizontal or vertical configuration capabilities
. 21″ depth for easier attic access
. DecaBDE-free thermoplastic drain pan with secondary drain connections
. Screw-less sides and back helps to reduce condensation when installed in humid locations
. Foil-faced insulation covers the internal casing to reduce cabinet condensation
. Galvanized, leather grain-embossed finish
. Glue-less cabinet insulation retention
. Tool-less filter access
. Field Installed 3 kW – 25 kW electric heater kits available
