3 Ton Goodman 15.2 SEER2 R32 Central Wall Mount System GLXS4BA3610, AWST36LU13 Apartment/Condo Type

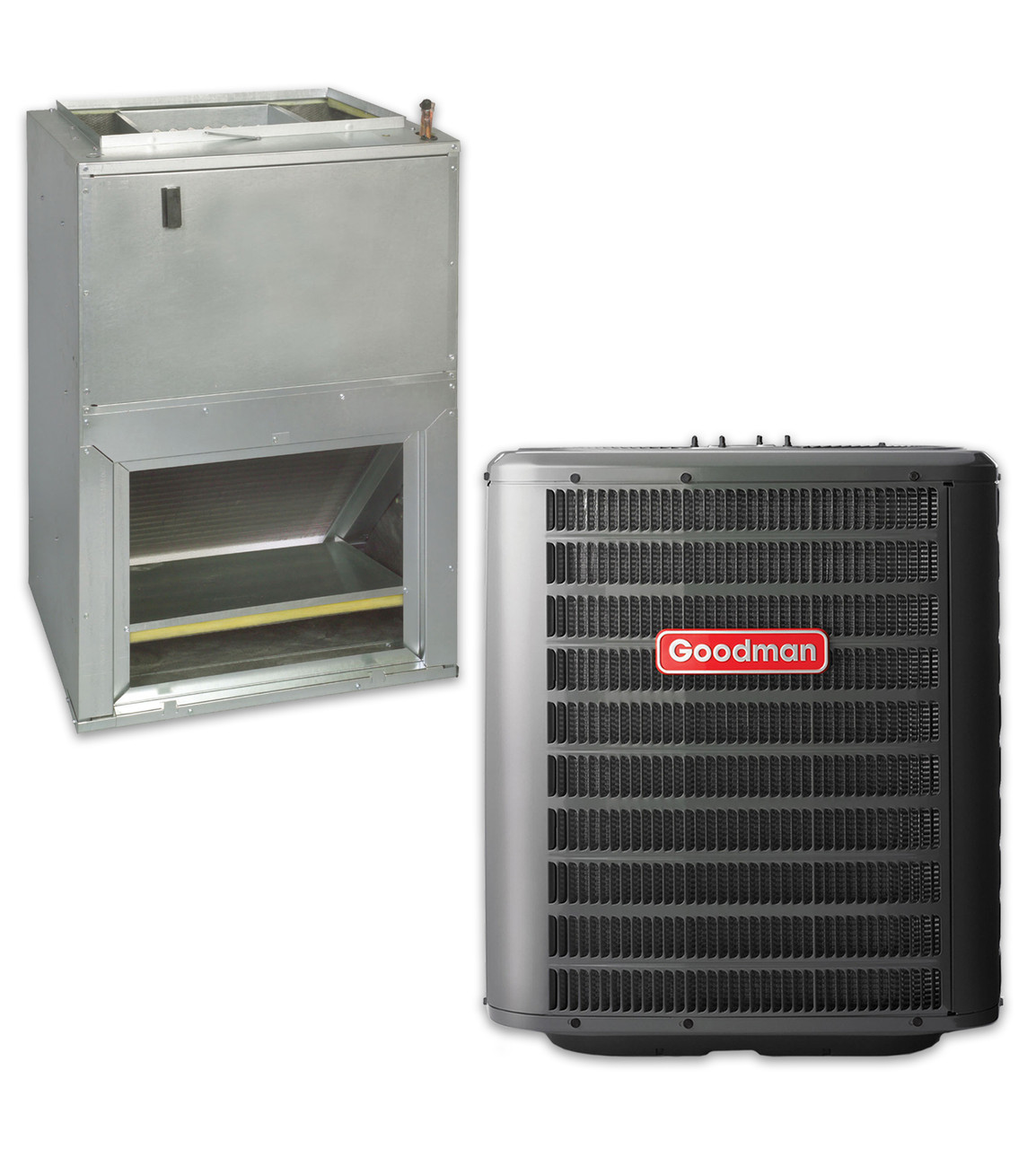

This is the largest system in Goodman’s AWST wall mount series. It pairs the 36,000 BTU/h GLXS4BA3610 condenser with the AWST36LU13 large-chassis air handler at 15.2 SEER2 (AHRI #214859636). It’s the only system in this group with a scroll compressor, and at 67 dBA the GLXS4BA3610 has the lowest sound rating in the GLXS4B series. That matters for condos where the outdoor unit sits on a balcony or close to a neighbor’s window. It suits larger condos, penthouse units and townhomes that need 3 tons of in-wall cooling, with factory heat options up to 10 kW.
Is a 3 Ton Air Conditioning System the Right Size?
Three tons (36,000 BTU/h) typically serves larger condos, multi-level townhomes and penthouse units, often around 1,500-1,800 sq. ft. as a rough guide. Since 3 tons is the top of the AWST wall mount line, it’s worth confirming the load carefully. Oversizing here can mean short cycles and humidity problems in a compact living space.
Top-floor and corner units, floor-to-ceiling glass, open layouts and high occupancy all increase cooling needs. Shared walls and shaded exposures reduce them. The AWST36LU13 also needs a front-return wall closet sized for the 24″ large chassis.
Ideal for: Larger condos, penthouse units, multi-level townhomes and multifamily units that need the maximum capacity available in a wall-mount air handler.
Need more capacity? The AWST line tops out at 3 tons. For bigger loads, consider a ducted system such as the 3.5 Ton Goodman R32 A/C System GLXS4BA4210, AMST42CU1300 with a multi-position air handler.
Recommended home sizes are general guidelines only. Actual system requirements depend on insulation, climate, windows, ductwork, occupancy and a proper load calculation. Request free sizing assistance, contact Budget Heating, or call 813-885-7999.
What’s Included
| Outdoor Condensing Unit | GLXS4BA3610 – 3 Ton R32 Split System Air Conditioner |
|---|---|
| Indoor Air Handler | AWST36LU13 Wall-Mount Air Handler (Large Chassis, 24″ Cabinet) |
| Application | Apartment/Condo Wall Mount Cooling System (Factory Electric Heat Optional) |
| Refrigerant | R-32 |
| Compressor | Single-Stage Scroll Compressor with Advanced Copeland Technology |
| Metering Device | Factory-Installed Thermal Expansion Valve (TXV) |
| Electrical | 208/230V, Single Phase, 60 Hz Condensing Unit – 17.8 MCA / 30A Max Overcurrent |
| Air Handler Electrical | 208/230V, Single Phase – See Rating Plate (Varies with Heat Option) |
The GLXS4BA3610 condenser measures 29″ x 29″ x 39-1/2″ and weighs 158 lbs, with a 69 oz. factory R-32 charge and 7/8″ suction and 3/8″ liquid connections. The AWST36LU13 delivers roughly 1,114-1,360 CFM at 0.1″ static across its five speed taps, the highest airflow in the AWST line. It shares the ratings of the ducted 3 ton GLXS4 15.2 SEER2 system but installs in a wall closet. For heat pump heating in the same footprint, see the 3 ton Goodman R32 heat pump wall mount system, or browse all wall mount air handlers.
Condensing Unit & Air Handler Features
GLXS4BA3610 Outdoor Condensing Unit
- 36,000 BTU/h nominal cooling capacity
- Single-stage scroll compressor with Advanced Copeland Technology
- 67 dBA rated sound level, the quietest in the GLXS4B series
- High-density foam compressor treatment
- 69 oz. factory R-32 charge for 15 ft. of tubing
- 3/8″ liquid and 7/8″ suction sweat service valves
- Factory-installed filter drier and high-pressure switch
- Venturi design for increased airflow velocity
- 2023 Florida Building Code hurricane-wind compliant when anchored
- 10-year parts limited warranty with online registration within 60 days
AWST36LU13 Wall-Mount Air Handler
- Top capacity of the AWST wall mount series
- Large chassis with 24″ cabinet and front return
- Direct-drive, multi-speed motor, 1,114-1,360 CFM across five taps at 0.1″
- R-32 refrigerant detection system with mitigation mode
- Built-in filter rack with 18″ x 20″ x 1″ filter included
- Factory-installed pull-type disconnect
- Cabinet air leakage under 1.4% at 0.5″ H₂O (ASHRAE 193)
- Bottom primary and secondary drain connections
- 4″ fresh air knockouts on both sides
- Factory pre-installed 5 kW, 8 kW or 10 kW heat available
Specifications & Manuals
Documentation includes GLXS4BA3610 specifications and expanded cooling data, AWST36LU13 airflow and dimensional data, R-32 installation and refrigerant detection instructions, and warranty certificates.
