3.5 Ton EcoTemp 15.5 SEER2 R454B Central System W5A5S42AKAWA, WCHL425AC

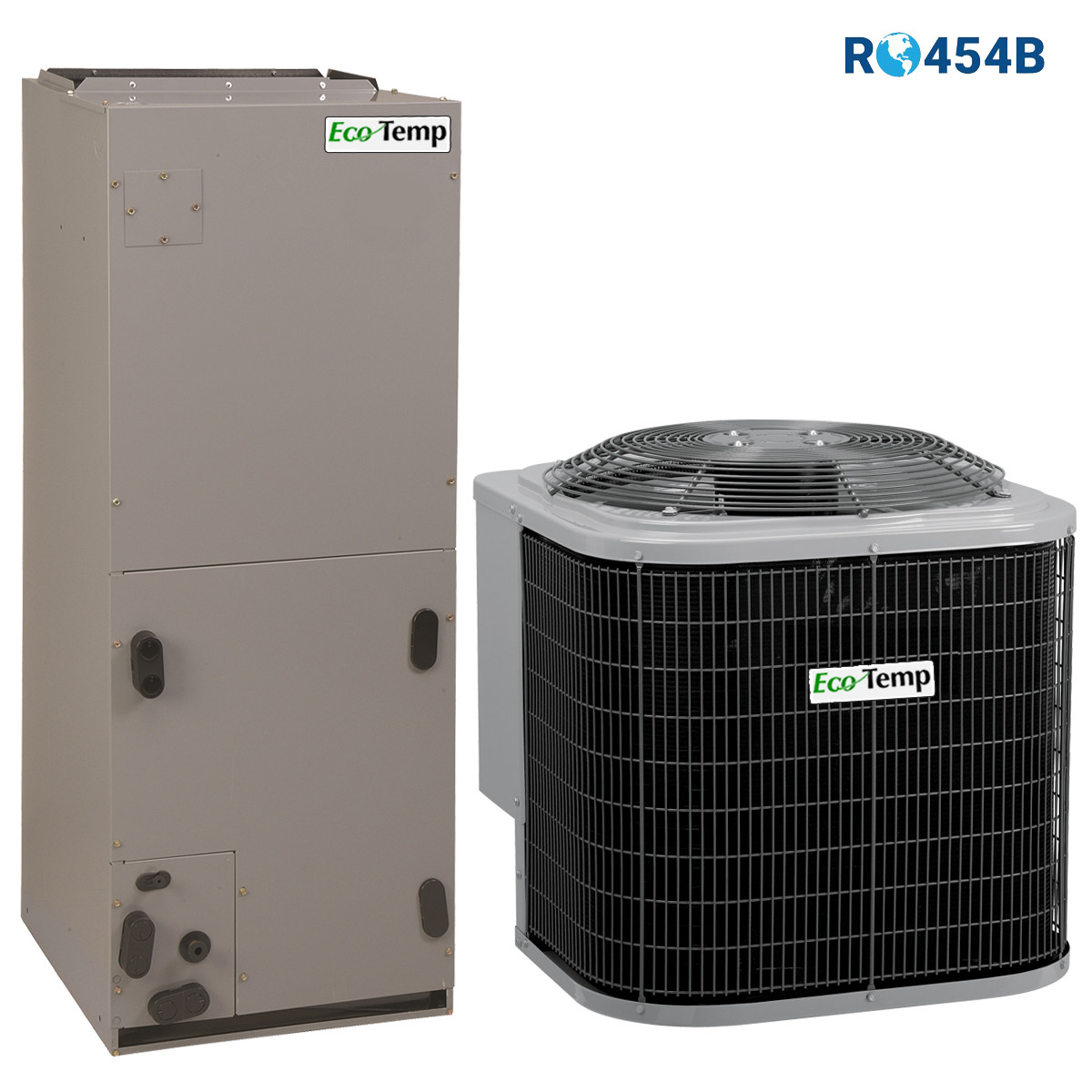

This EcoTemp system pairs the W5A5S42AKAWA single-stage condenser with the WCHL425AC multipoise ECM air handler, AHRI certified at 15.5 SEER2 (#214879387). It runs on R-454B, a low-GWP A2L refrigerant, and the air handler has a refrigerant leak detection and dissipation system and a factory-installed TXV. It’s cooling only, with electric heat kits from 5 kW up to 20 kW available.
Is a 3.5 Ton Air Conditioning System the Right Size?
A 3.5 ton system is common in larger 3- and 4-bedroom homes around 1,800-2,100 sq. ft. as a general reference.
Stepping up from 3 tons means more airflow, so older duct systems are often the limit. A Manual J load calculation and a duct review confirm the fit.
Ideal for: Larger 3- and 4-bedroom homes, split-level homes and open-concept layouts.
Need more capacity? Step up to the 4 Ton EcoTemp 15.2 SEER2 R454B Central System W5A5S48AKAWA, WCHL485AC for a larger load.
Recommended home sizes are general guidelines only. Actual system requirements depend on insulation, climate, windows, ductwork, occupancy and a proper load calculation. Request free sizing assistance, contact Budget Heating, or call 813-885-7999.
What’s Included
| Outdoor Condensing Unit | W5A5S42AKAWA – 3.5 Ton EcoTemp R-454B Air Conditioner |
|---|---|
| Indoor Air Handler | WCHL425AC Multipoise ECM Air Handler (21-1/8″ Wide) |
| Application | Cooling-Only Central Air Split System (Electric Heat Kit Optional) |
| Refrigerant | R-454B (Low-GWP A2L Refrigerant) |
| Compressor | Single-Stage Scroll Compressor |
| Metering Device | Factory-Installed R-454B TXV at Indoor Coil |
| Electrical | 208/230V, Single Phase, 60 Hz Condensing Unit – 22.7 MCA / 40A Max Fuse or Breaker |
| Air Handler Electrical | 208/230V, Single Phase – 5.3 MCA / 15A Max Overcurrent (Without Electric Heat) |
The W5A5S42AKAWA condenser is 38-7/16″ tall on a 31-3/16″ square base and ships at 215 lbs. The WCHL425AC air handler is 49-5/8″ tall, 21-1/8″ wide and 22-1/16″ deep and ships at 166 lbs. Complete the install with compatible thermostats and copper line sets and fittings.
Condensing Unit & Air Handler Features
W5A5S42AKAWA Outdoor Condensing Unit
- 42,000 BTU/h nominal cooling capacity
- Single-stage scroll compressor (17.3 RLA, 123.0 LRA)
- 75 dBA sound power rating
- 1/5 HP direct drive condenser fan, vertical discharge
- 3/8″ liquid and 7/8″ vapor service valve connections
- Factory charged with 7.2 lb R-454B for 15 ft of line set
- Long-line capable up to 250 ft total equivalent length
- Low ambient cooling down to 0°F with accessory kit
- Internal pressure relief valve, internal thermal overload and filter drier
- 5-year parts limited warranty, 10 years with registration within 90 days
WCHL425AC Multipoise ECM Air Handler
- Multipoise cabinet: upflow or horizontal left, downflow with kit
- Refrigerant leak detection and dissipation system
- 1/2 HP multi-tap ECM blower motor with five speed taps
- 1,225 CFM nominal airflow
- Factory-installed R-454B TXV
- Grooved tube, louvered fin aluminum A-coil
- 3/4″ FPT condensate connection
- R-4.2 insulation with vapor barrier, prepainted steel cabinet
- Filter rack fits a 20″ x 20″ filter
- Field-installed electric heat kits, 5 kW up to 20 kW
Specifications & Manuals
Documentation includes the W5A5S single-stage R-454B condenser product specifications and the WCHL ECM fan coil product data, including dimensions, electrical data, airflow tables and heater kits.
