2 Ton Goodman 14.5 SEER2 R32 A/C System GLXS4BA2410, AMST24BU1300

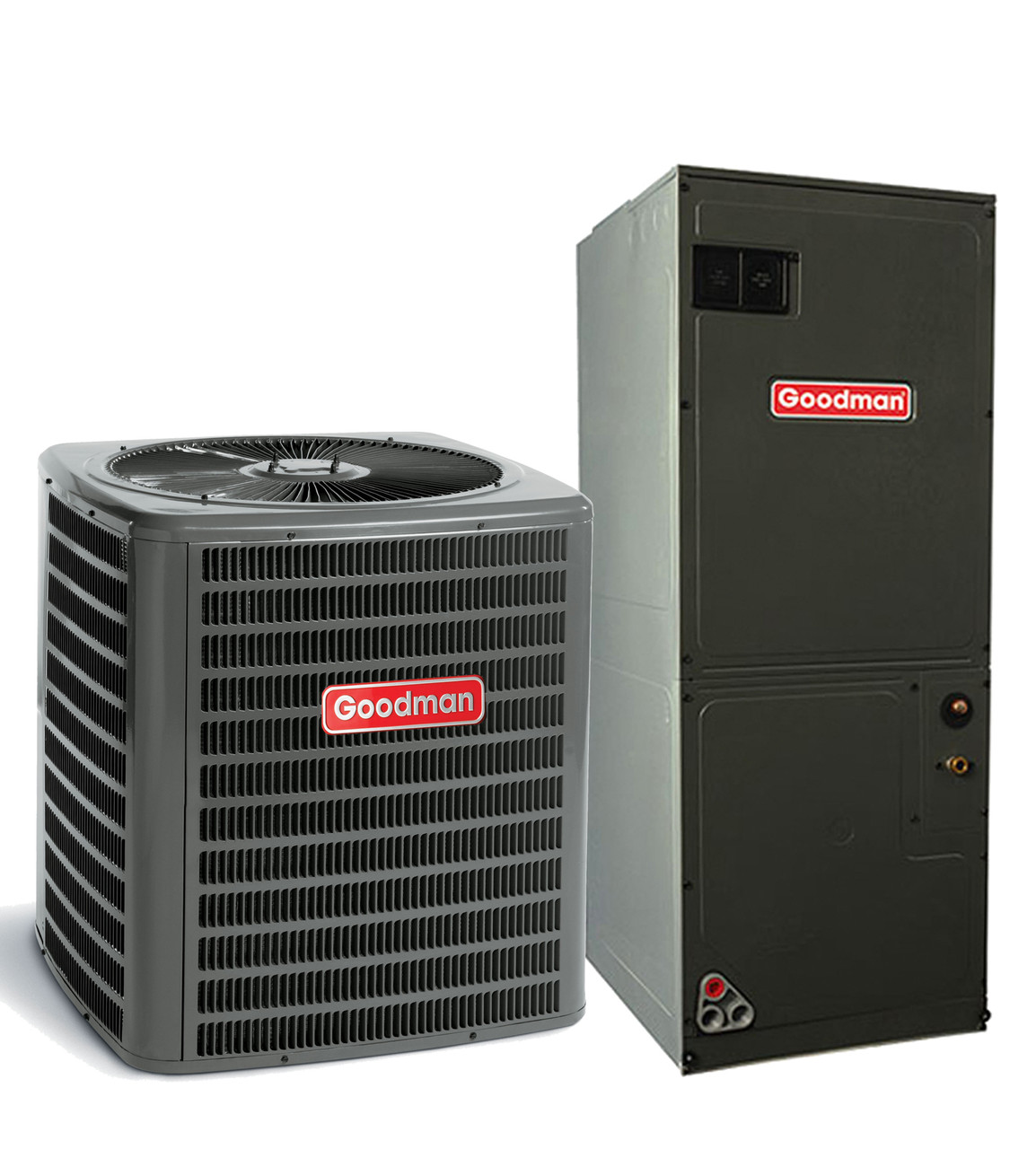

This Goodman central air split system delivers 24,000 BTU/h from the GLXS4BA2410 outdoor condenser. It’s matched with the AMST24BU1300 multi-position air handler under AHRI certificate #215214929. The 2 ton size fits starter homes, larger condos, manufactured-home replacements and rental units. It’s a good choice for property owners and installers who want an R-32 system that keeps small-home install costs down. The air handler has an internal TXV and a multi-speed ECM blower, and the condenser comes with a factory-installed filter drier and service valves ready to braze.
Is a 2 Ton Air Conditioning System the Right Size?
At 24,000 BTU/h, a 2 ton system handles a moderate cooling load. As a general reference point, that’s often a home of about 900-1,200 sq. ft. Two homes with the same floor plan can need different tonnage, though. Orientation, shade and construction quality all change the heat gain.
Before choosing 2 tons, look at ceiling insulation levels, the number and size of west-facing windows, how tight the home is, and whether the ductwork is sealed and sized right. A system that’s too big clears the thermostat quickly but pulls out less moisture. A Manual J load calculation takes the guesswork out, and it matters most when moving from an older R-22 or R-410A unit that may have been oversized.
Ideal for: Starter homes, 2-bedroom houses, larger condos, rental properties, garage apartments and single-zone additions with average insulation.
Need more capacity? Step up to the 2.5 Ton Goodman R32 A/C System GLXS4BA3010, AMST30BU1300 for homes with open floor plans, vaulted ceilings or more sun exposure.
Recommended home sizes are general guidelines only. Actual system requirements depend on insulation, climate, windows, ductwork, occupancy and a proper load calculation. Request free sizing assistance, contact Budget Heating, or call 813-885-7999.
What’s Included
| Outdoor Condensing Unit | GLXS4BA2410 – 2 Ton R32 Split System Air Conditioner |
|---|---|
| Indoor Air Handler | AMST24BU1300 Multi-Position ECM Air Handler (B Cabinet, 17.5″ Wide) |
| Application | Cooling-Only Central Air Split System (Electric Heat Kit Optional) |
| Refrigerant | R-32 |
| Compressor | Single-Stage Rotary Compressor with Advanced Copeland Technology |
| Metering Device | Factory-Installed Internal Thermal Expansion Valve (TXV) |
| Electrical | 208/230V, Single Phase, 60 Hz Condensing Unit – 10.9 MCA / 15A Max Overcurrent |
| Air Handler Electrical | 208/240V, Single Phase – 5.8 MCA / 15A Max Overcurrent (No Heat Kit) |
The GLXS4BA2410 has the same compact 26″ x 26″ x 27″ footprint as the 1.5 ton, so it drops into tight side yards and small pads with little rework. It runs on 3/8″ liquid and 3/4″ suction lines, and a matching copper line set and fittings finish the refrigerant side of the install. The AMST24BU1300’s nine ECM speed taps let your technician dial in airflow for 2 ton operation on existing ducts. The 2 ton GLXS4BA2410 condenser is also sold on its own for outdoor-only replacements.
Condensing Unit & Air Handler Features
GLXS4BA2410 Outdoor Condensing Unit
- 24,000 BTU/h nominal cooling for moderate residential loads
- Single-stage rotary compressor with Advanced Copeland Technology
- Rated sound level of 74 dBA
- Enclosed contactor and ground lug connection
- Capacitors engineered for extended life
- Venturi design increases condenser airflow velocity
- Steel louver coil guard and wire fan discharge grille
- Removable grille-style top compliant with UL 60335-2-40
- Single-panel control access with space for field accessories
- 10-year parts limited warranty with online registration within 60 days
AMST24BU1300 Multi-Position Air Handler
- Nine-tap multi-speed ECM blower for flexible airflow setup
- Internal TXV for precise refrigerant metering
- All-aluminum evaporator coil
- Coil mounting track for quick repositioning
- Screw-less sides and back help limit condensation in humid spaces
- Cabinet air leakage under 1.4% at 0.5″ H₂O (ASHRAE 193)
- Galvanized, leather grain-embossed cabinet finish
- Glue-less cabinet insulation retention
- Factory-installed R-32 sensor, UL 60335-2-40 compliant
- AHRI certified and ETL listed
Specifications & Manuals
Product documentation covers GLXS4BA2410 electrical and refrigerant data, AMST24BU1300 airflow tables, heat kit ratings, dimensions and step-by-step installation guidance.
