Name: 2.5 Ton Goodman 14.5 SEER2 R32 A/C System GLXS4BA3010, AMST30BU1300
Brand: Budget Heating
SKU: 8
Availability: InStock

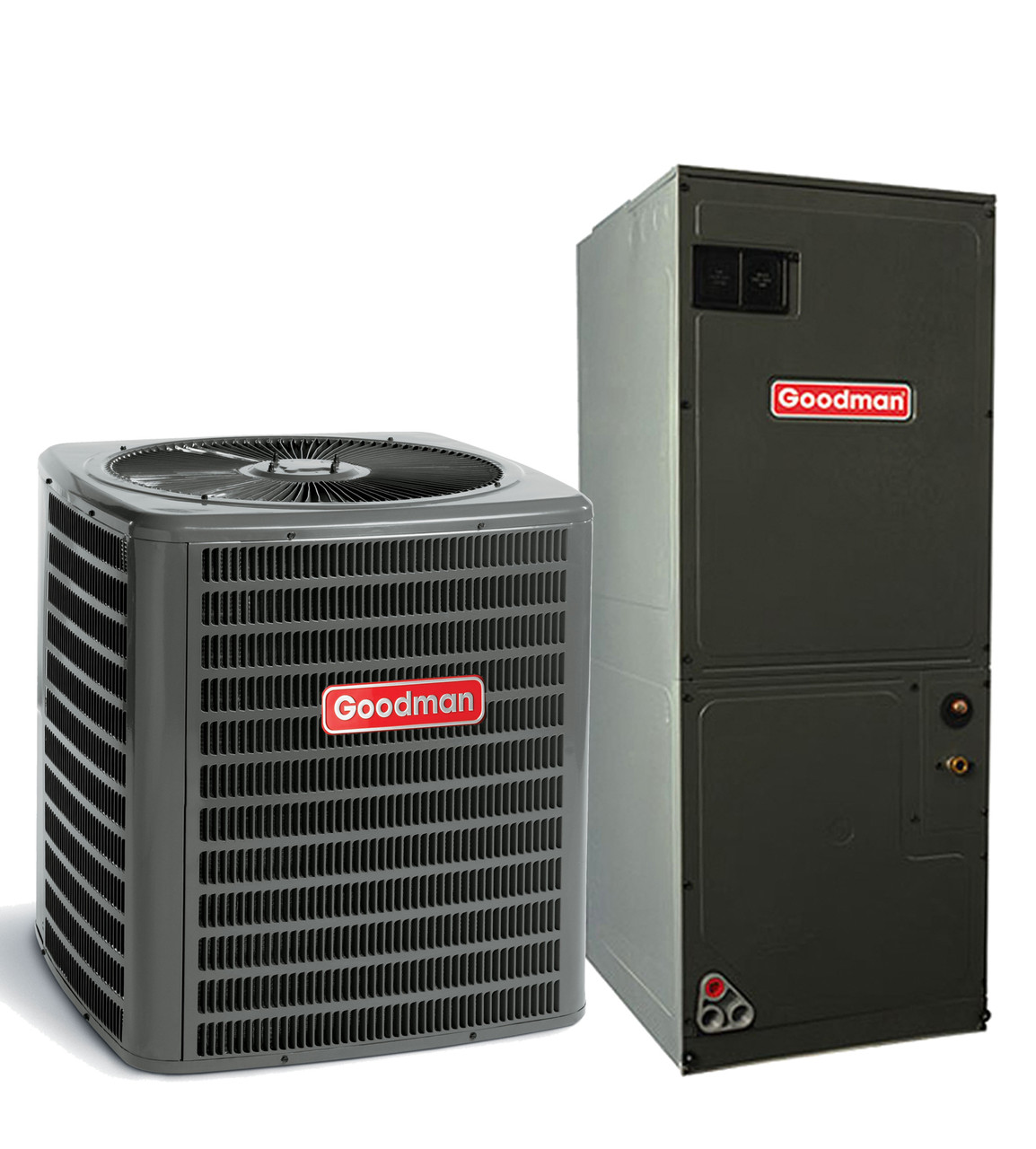

2.5 Ton Goodman 14.5 SEER2 R32 A/C System GLXS4BA3010, AMST30BU1300

The midpoint of the GLXS4B lineup pairs the 30,000 BTU/h GLXS4BA3010 condenser with the AMST30BU1300 air handler, a combination listed under AHRI certificate #215214932. This 14.5 SEER2 R-32 split system suits growing families and homeowners in average-sized homes. It also works well for contractors replacing aging 2.5 ton central air where the existing air handler sits in a closet or attic. It’s cooling only as shipped, and you can add field-installed Goodman heat strips for backup heat on cooler mornings.

Is a 2.5 Ton Air Conditioning System the Right Size?

A 2.5 ton system provides 30,000 BTU/h of nominal cooling. It’s a common choice for homes that have outgrown a 2 ton unit but don’t have the load for 3 tons. As a very general reference, that’s often around 1,200-1,500 sq. ft. The decision should still rest on calculated heat gain, not floor area alone.

Open kitchens, vaulted living rooms, large sliding doors and a second-floor bedroom wing can all push a home toward the upper end of the 2.5 ton range. Upgraded attic insulation, low-E windows and sealed ducts can pull it back down. Room-by-room load math also shows how airflow should be split across supply registers.

Ideal for: 3-bedroom ranch homes, townhouses, split-level homes and average-sized single-family houses with moderate sun exposure.

Need more capacity? Step up to the 3 Ton Goodman R32 A/C System GLXS4BA3610, AMST36CU1300 for larger homes, two-story layouts or higher cooling loads.

Recommended home sizes are general guidelines only. Actual system requirements depend on insulation, climate, windows, ductwork, occupancy and a proper load calculation. Request free sizing assistance, contact Budget Heating, or call 813-885-7999.

What’s Included

Outdoor Condensing Unit	GLXS4BA3010 – 2.5 Ton R32 Split System Air Conditioner
Indoor Air Handler	AMST30BU1300 Multi-Position ECM Air Handler (B Cabinet, 17.5″ Wide)
Application	Cooling-Only Central Air Split System (Electric Heat Kit Optional)
Refrigerant	R-32
Compressor	Single-Stage Rotary Compressor with Advanced Copeland Technology
Metering Device	Factory-Installed Internal Thermal Expansion Valve (TXV)
Electrical	208/230V, Single Phase, 60 Hz Condensing Unit – 15.0 MCA / 25A Max Overcurrent
Air Handler Electrical	208/240V, Single Phase – 5.6 MCA / 15A Max Overcurrent (No Heat Kit)

The GLXS4BA3010 moves into a larger 29″ x 29″ x 32″ cabinet with a 1/6 HP fan motor. Goodman gives it a 71 dBA sound rating, which is quieter than the 1.5 and 2 ton models. Indoors, the AMST30BU1300 keeps the slim 17.5″ B cabinet but stands 53-7/16″ tall to house a larger coil. That makes it a practical swap in a standard utility closet. If you prefer higher rated efficiency, compare it with the 2.5 ton GLXS4BA3010 system matched with the AMST36CU1300. You can browse more indoor options in our air handlers category.

Condensing Unit & Air Handler Features

GLXS4BA3010 Outdoor Condensing Unit

30,000 BTU/h nominal cooling capacity
Energy-efficient single-stage rotary compressor
71 dBA rated sound level
1/6 HP PSC condenser fan motor
Factory charged with 63 oz. of R-32 for 15 ft. of tubing
5 mm copper tube / enhanced aluminum fin condenser coil
Factory-installed filter drier protects the refrigerant circuit
Top and side maintenance access
500-hour salt-spray approved Architectural Gray finish
Anchor bracket kits available for hurricane-wind code compliance

AMST30BU1300 Multi-Position Air Handler

30,000 BTU/h nominal capacity in a 17.5″ B cabinet
&#190 HP direct drive, multi-speed ECM blower
Internal factory-installed TXV for cooling and heat pump use
All-aluminum evaporator coil optimized for R-32
Vertical upflow or horizontal installation, with a DFKE-02 kit for downflow
Tool-less access to a 16″ x 20″ filter
Foil-faced insulation covers the internal casing
Thermoplastic drain pan with secondary drain connections
Compatible with HKTS electric heat kits from 3 kW to 15 kW
10-year parts limited warranty with timely online registration

Specifications & Manuals

GLXS4B Technical Specifications GLXS4 GLXS5 Installation Manual AMST R32 Technical Specifications AMST R32 Install Manual

Downloadable documentation includes GLXS4BA3010 performance and electrical data, AMST30BU1300 airflow and heat kit tables, unit dimensions and full installation instructions.
