Name: 3 Ton Goodman 14.5 SEER2 R32 A/C System GLXS4BA3610, AMST36CU1300
Brand: Budget Heating
SKU: 11
Availability: InStock

3 Ton Goodman 14.5 SEER2 R32 A/C System GLXS4BA3610, AMST36CU1300

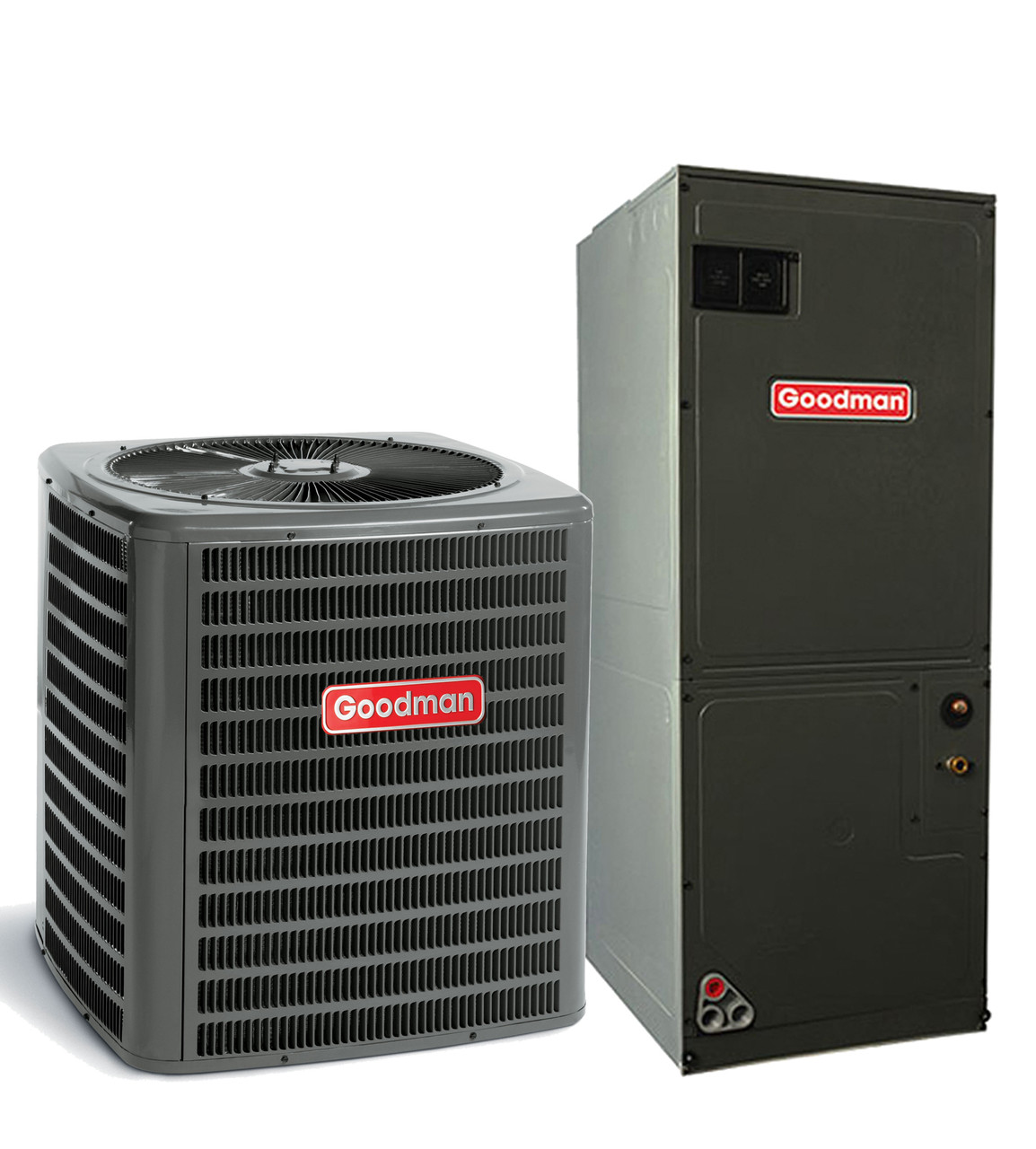

For the most common central air replacement size, this Goodman package matches the 36,000 BTU/h GLXS4BA3610 condenser with the AMST36CU1300 air handler (AHRI #214859638). It’s the first size in the GLXS4B series with a scroll compressor, and at 67 dBA it has the lowest rated sound level in the lineup. That makes it a strong choice for homeowners whose condenser sits near a patio, bedroom window or neighbor’s fence. It’s R-32, rated 14.5 SEER2, and cooling only unless you add an optional heat kit.

Is a 3 Ton Air Conditioning System the Right Size?

Three tons, or 36,000 BTU/h, covers a wide range of mid-size homes. That’s often around 1,500-1,800 sq. ft. as a loose rule of thumb, and it’s the size many existing homes were originally built with. When a 3 ton unit is being replaced, it’s worth confirming the original size was right. Insulation, windows and ducts may have been upgraded since the first system went in.

Two-story homes, big west-facing glass, high occupancy and hot, humid climates tend to push the load up. Shaded lots and modern building envelopes bring it down. A Manual J calculation paired with a duct check ensures the AMST36CU1300’s airflow tap matches both the system and the home.

Ideal for: Mid-size single-family homes, 3-4 bedroom houses, two-story homes with moderate loads and replacements of original 3 ton systems.

Need more capacity? Step up to the 3.5 Ton Goodman R32 A/C System GLXS4BA4210, AMST42CU1300 for larger homes or layouts with heavy afternoon sun.

Recommended home sizes are general guidelines only. Actual system requirements depend on insulation, climate, windows, ductwork, occupancy and a proper load calculation. Request free sizing assistance, contact Budget Heating, or call 813-885-7999.

What’s Included

Outdoor Condensing Unit	GLXS4BA3610 – 3 Ton R32 Split System Air Conditioner
Indoor Air Handler	AMST36CU1300 Multi-Position ECM Air Handler (C Cabinet, 21″ Wide)
Application	Cooling-Only Central Air Split System (Electric Heat Kit Optional)
Refrigerant	R-32
Compressor	Single-Stage Scroll Compressor with Advanced Copeland Technology
Metering Device	Factory-Installed Internal Thermal Expansion Valve (TXV)
Electrical	208/230V, Single Phase, 60 Hz Condensing Unit – 17.8 MCA / 30A Max Overcurrent
Air Handler Electrical	208/240V, Single Phase – 7.1 MCA / 15A Max Overcurrent (No Heat Kit)

The GLXS4BA3610 stands 39-1/2″ tall on a 29″ x 29″ footprint. It steps up to a 7/8″ suction line, so your installer should confirm the existing line set before reuse. The AMST36CU1300 moves to the 21″ C cabinet with an 8″-wide blower wheel, and at 49″ tall it fits most closets and attic platforms. Need heat without strips? The 3 ton Goodman R32 heat pump system GLZS4BA3610 uses the same air handler. For a higher rated efficiency match, see the 3 ton GLXS4BA3610 paired with the AMST42CU1300.

Condensing Unit & Air Handler Features

GLXS4BA3610 Outdoor Condensing Unit

36,000 BTU/h nominal cooling capacity
Single-stage scroll compressor with Advanced Copeland Technology
Lowest rated sound level in the GLXS4B series at 67 dBA
High-density foam compressor treatment
Factory charged with 69 oz. of R-32 for 15 ft. of tubing
3/8″ liquid and 7/8″ suction sweat service valves
Enclosed contactor and high-pressure switch
Extended-life capacitors
Steel louver coil guard protects the condenser coil
Hurricane-wind rated per 2023 Florida Building Code when anchored

AMST36CU1300 Multi-Position Air Handler

21″ C cabinet with 10″ x 8″ blower wheel
&#190 HP direct drive, multi-speed ECM motor
Internal factory-installed TXV
All-aluminum evaporator coil designed for R-32
21-1/8″ depth for easier attic access
Rigid SmartFrame cabinet with screw-less sides and back
Tool-less access to a 19.5″ x 20″ filter
Optional HHK0005 high humidity kit available
Accepts HKTS electric heat kits from 3 kW up to 19 kW
UL 60335-2-40 compliant with factory-installed R-32 sensor

Specifications & Manuals

GLXS4B Technical Specifications GLXS4 GLXS5 Installation Manual AMST R32 Technical Specifications AMST R32 Install Manual

Documentation includes GLXS4BA3610 expanded cooling data, AMST36CU1300 airflow tables by speed tap, heat kit electrical data, dimensional drawings and installation procedures.
