1.5 Ton Goodman 15 SEER2 R32 A/C System GLXS4BA1810, AMST24BU1300

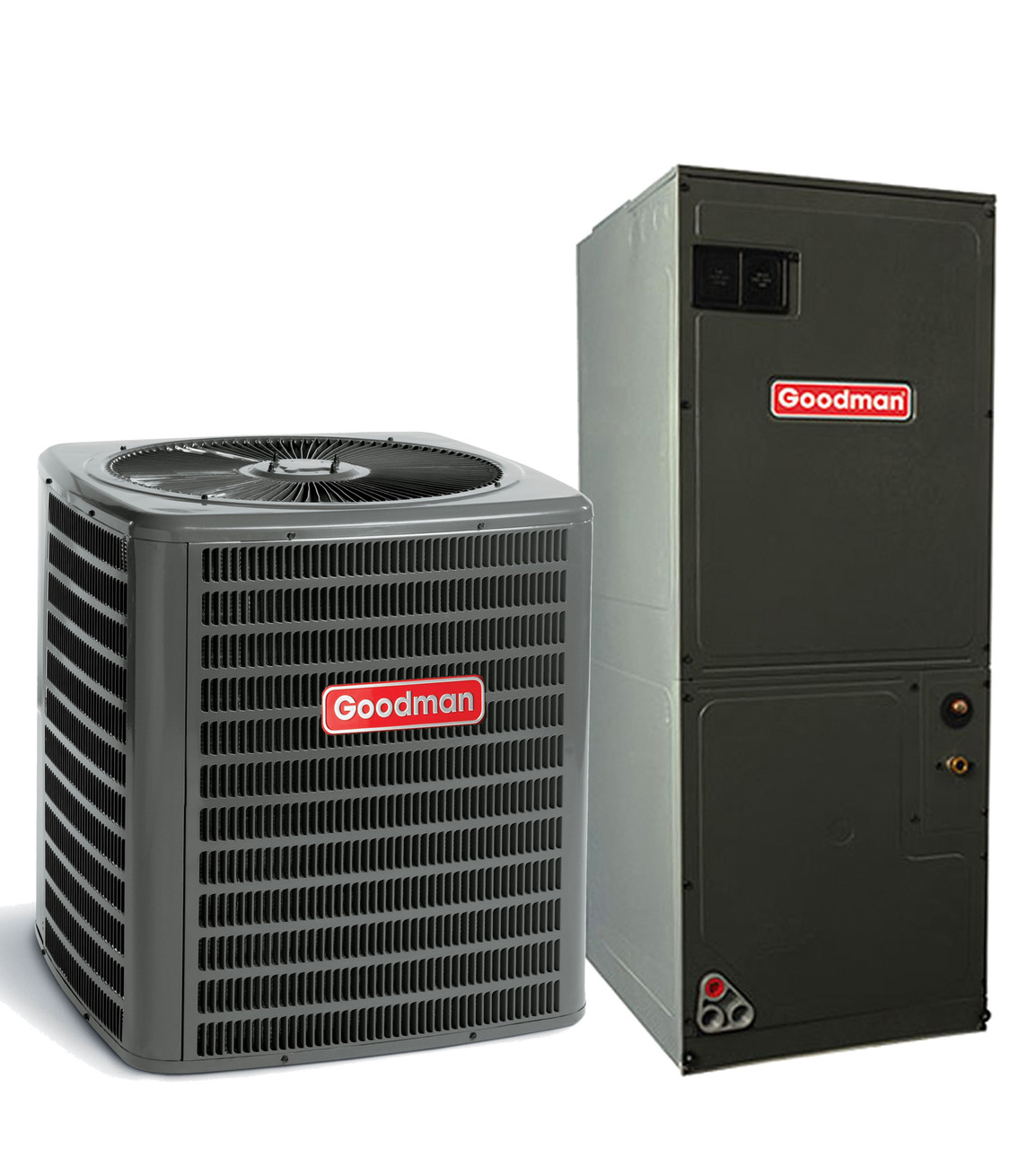

This is the smallest system in the Goodman GLXS4B R32 lineup. It pairs the 18,000 BTU/h GLXS4BA1810 outdoor condenser with the AMST24BU1300 multi-position ECM air handler, and the two are AHRI certified together (AHRI #215214926). It suits homeowners, landlords and HVAC contractors replacing central air in a compact home, condo, apartment or addition. It uses lower-GWP R-32 refrigerant and a factory-installed TXV, and it’s built for cooling-only installs. You can add optional electric heat strips for backup heat.
Is a 1.5 Ton Air Conditioning System the Right Size?
A 1.5 ton system delivers 18,000 BTU/h of nominal cooling. It’s meant for spaces with a light cooling load, not just a small floor plan. As a rough starting point, it often fits small homes, condos and apartments in the 600-900 sq. ft. range. The number that matters is the home’s calculated heat gain.
Sizing depends on several factors: attic and wall insulation, window area and sun exposure, local design temperatures, air leakage, ductwork condition and how many people live there. An oversized system short-cycles and leaves humidity behind, which is a real problem in Florida and Gulf Coast homes. An undersized one runs nonstop on the hottest afternoons. A Manual J load calculation is the best way to confirm that 1.5 tons is right.
Ideal for: Condos, apartments, small single-story homes, finished bonus rooms, in-law suites and tight-envelope new construction with low cooling loads.
Need more capacity? Step up to the 2 Ton Goodman R32 A/C System GLXS4BA2410, AMST24BU1300 for homes with more sun exposure, extra rooms or a higher heat load.
Recommended home sizes are general guidelines only. Actual system requirements depend on insulation, climate, windows, ductwork, occupancy and a proper load calculation. Request free sizing assistance, contact Budget Heating, or call 813-885-7999.
What’s Included
| Outdoor Condensing Unit | GLXS4BA1810 – 1.5 Ton R32 Split System Air Conditioner |
|---|---|
| Indoor Air Handler | AMST24BU1300 Multi-Position ECM Air Handler (B Cabinet, 17.5″ Wide) |
| Application | Cooling-Only Central Air Split System (Electric Heat Kit Optional) |
| Refrigerant | R-32 |
| Compressor | Single-Stage Rotary Compressor with Advanced Copeland Technology |
| Metering Device | Factory-Installed Internal Thermal Expansion Valve (TXV) |
| Electrical | 208/230V, Single Phase, 60 Hz Condensing Unit – 10.9 MCA / 15A Max Overcurrent |
| Air Handler Electrical | 208/240V, Single Phase – 5.8 MCA / 15A Max Overcurrent (No Heat Kit) |
The GLXS4BA1810 is a compact outdoor unit at 26″ W x 26″ D x 27″ H and 117 lbs. It’s easy to set on a small pad or a condenser wall mount or stand next to a townhome or condo. Indoors, the 45″-tall AMST24BU1300 fits a closet, attic or crawlspace in upflow or horizontal position. Its ¾ HP multi-speed ECM blower lets your installer match airflow to the ductwork. If you only need the outdoor side, the 1.5 ton GLXS4BA1810 condenser is also sold separately.
Condensing Unit & Air Handler Features
GLXS4BA1810 Outdoor Condensing Unit
- 18,000 BTU/h nominal cooling capacity
- Single-stage rotary compressor with Advanced Copeland Technology
- High-density foam compressor treatment
- Factory charged for 15 ft. of tubing (53 oz. R-32)
- Copper tube / enhanced aluminum fin coil with 5 mm tubing
- Factory-installed filter drier and high-pressure switch
- Sweat connection service valves with easy gauge-port access
- 3/8″ liquid and 3/4″ suction line connections
- Architectural Gray powder paint with 500-hour salt-spray approval
- Meets 2023 Florida Building Code hurricane wind requirements when properly anchored
AMST24BU1300 Multi-Position Air Handler
- Internal factory-installed thermal expansion valve
- Direct drive, multi-speed ECM blower motor (¾ HP)
- All-aluminum evaporator coil optimized for R-32
- Factory-installed R-32 refrigerant sensor
- Rigid SmartFrame cabinet with upflow or horizontal configuration
- Cabinet air leakage under 2.0% at 1.0″ H₂O (ASHRAE 193)
- Foil-faced insulation reduces cabinet condensation
- DecaBDE-free thermoplastic drain pan with secondary drain connections
- Tool-less filter access (16″ x 20″ filter)
- Accepts field-installed HKTS electric heat kits from 3 kW up to 15 kW
Specifications & Manuals
Product documentation includes condenser and air handler specifications, electrical data, dimensions, airflow tables, heat kit data and installation instructions for the GLXS4BA1810 and AMST24BU1300.
