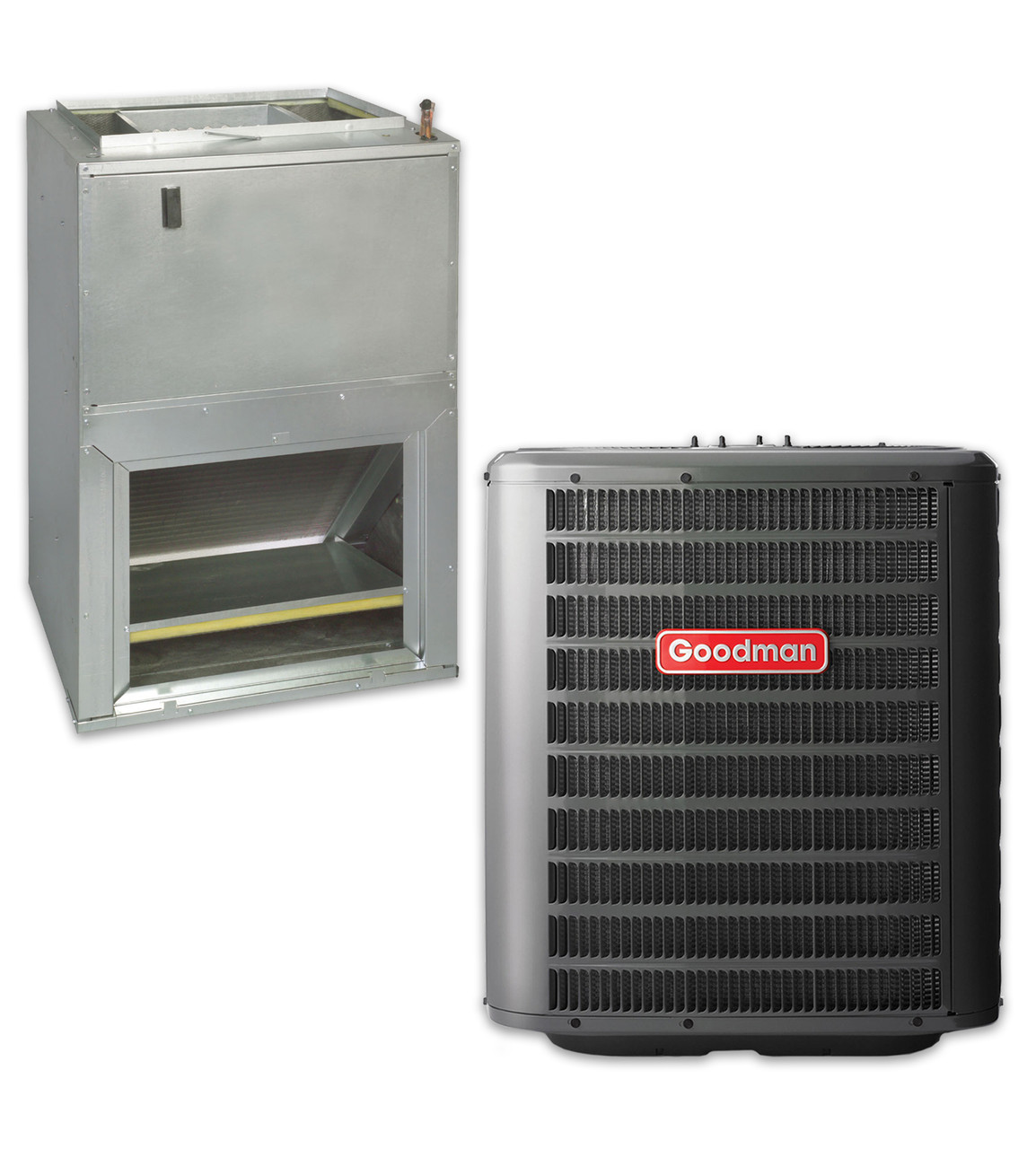

1.5 Ton Goodman 14.3 SEER2 R32 Central A/C Wall Mount Split System GLXS4BA1810, AWST18SU13 Apartment/Condo Type Air Handler
This R-32 split system is built for apartments, condos and other spaces where the air handler lives inside a wall closet instead of an attic. It pairs the 18,000 BTU/h GLXS4BA1810 outdoor condenser with the AWST18SU13 wall-mount air handler under AHRI certificate #215214928 at 14.3 SEER2. The AWST18SU13 recesses between wall studs or hangs from its offset bracket in a vertical upflow position. It includes a factory-installed pull-out disconnect, a built-in filter rack and a refrigerant detection system for R-32. It’s a practical replacement for property managers, condo owners and contractors updating compact, closet-mounted systems. Factory pre-installed 5 kW or 8 kW heat can be selected when ordering.
Is a 1.5 Ton Air Conditioning System the Right Size?
A 1.5 ton system provides 18,000 BTU/h of nominal cooling. It’s commonly used in studio, one-bedroom and smaller two-bedroom apartments and condos, often somewhere around 600-900 sq. ft. as a rough guide. Unit location matters. A top-floor corner condo gains far more heat than an interior unit with neighbors on every side.
Also consider window area and exposure, how many people live in the unit, kitchen heat and the condition of any short duct runs. Goodman’s R-32 safety guidance also sets a minimum conditioned area of 200 sq. ft. for the AWST18SU13, which nearly every apartment exceeds. A load calculation confirms that 1.5 tons is the right match.
Ideal for: Studio and one-bedroom apartments, smaller condos, in-law suites and multifamily units with an in-wall air handler closet.
Need more capacity? Step up to the 2 Ton Goodman 14.5 SEER2 R32 Wall Mount Split System GLXS4BA2410, AWST24SU13, which uses the same small-chassis cabinet.
Recommended home sizes are general guidelines only. Actual system requirements depend on insulation, climate, windows, ductwork, occupancy and a proper load calculation. Request free sizing assistance, contact Budget Heating, or call 813-885-7999.
What’s Included
| Outdoor Condensing Unit | GLXS4BA1810 – 1.5 Ton R32 Split System Air Conditioner |
|---|---|
| Indoor Air Handler | AWST18SU13 Wall-Mount Air Handler (Small Chassis, 20.2″ Cabinet) |
| Application | Apartment/Condo Wall Mount Cooling System (Factory Electric Heat Optional) |
| Refrigerant | R-32 |
| Compressor | Single-Stage Rotary Compressor with Advanced Copeland Technology |
| Metering Device | Factory-Installed Thermal Expansion Valve (TXV) |
| Electrical | 208/230V, Single Phase, 60 Hz Condensing Unit – 10.9 MCA / 15A Max Overcurrent |
| Air Handler Electrical | 208/230V, Single Phase – See Rating Plate (Varies with Heat Option) |
The GLXS4BA1810 condenser is compact at 26″ x 26″ x 27″ and 117 lbs, which makes it well suited to balconies, small side yards and a condenser wall bracket or pad. The AWST18SU13 air handler uses the small chassis with front or bottom return, a 14″ x 18″ x 1″ filter and 4″ fresh air knockouts on both sides. If your building has attic or closet space for a standard air handler instead, compare the 1.5 ton GLXS4BA1810 system with the AMST24BU1300.
Condensing Unit & Air Handler Features
GLXS4BA1810 Outdoor Condensing Unit
- 18,000 BTU/h nominal cooling capacity
- Single-stage rotary compressor with Advanced Copeland Technology
- Compact 26″ x 26″ x 27″ cabinet, 117 lbs
- 74 dBA rated sound level
- Factory charged for 15 ft. of tubing (53 oz. R-32)
- 3/8″ liquid and 3/4″ suction sweat service valves
- Factory-installed filter drier and high-pressure switch
- Architectural Gray finish with 500-hour salt-spray approval
- Meets 2023 Florida Building Code hurricane-wind requirements when anchored
- 10-year parts limited warranty with online registration within 60 days
AWST18SU13 Wall-Mount Air Handler
- Designed to recess into a wall or hang in a vertical upflow position
- Offset wall-hanging bracket attached to the rear of the cabinet
- Small chassis with front or bottom return
- Factory-installed pull-type disconnect
- Built-in filter rack with 14″ x 18″ x 1″ filter included
- R-32 refrigerant detection system with leak mitigation mode
- Direct-drive, multi-speed motor with five speed taps
- Bottom primary and secondary drain connections (3/4″ NPT)
- 4″ fresh air knockouts on both sides of the cabinet
- Factory pre-installed 5 kW or 8 kW heat available
Specifications & Manuals
Product documentation includes condenser specifications, wall-mount air handler dimensions and airflow tables, R-32 installation and refrigerant detection instructions, and warranty certificates for both components.
