Name: 2.5 Ton Goodman 15.2 SEER2 R32 Central Wall Mount System GLXS4BA3010, AWST30LU13 Apartment/Condo Type
Brand: Budget Heating
SKU: 4
Availability: InStock

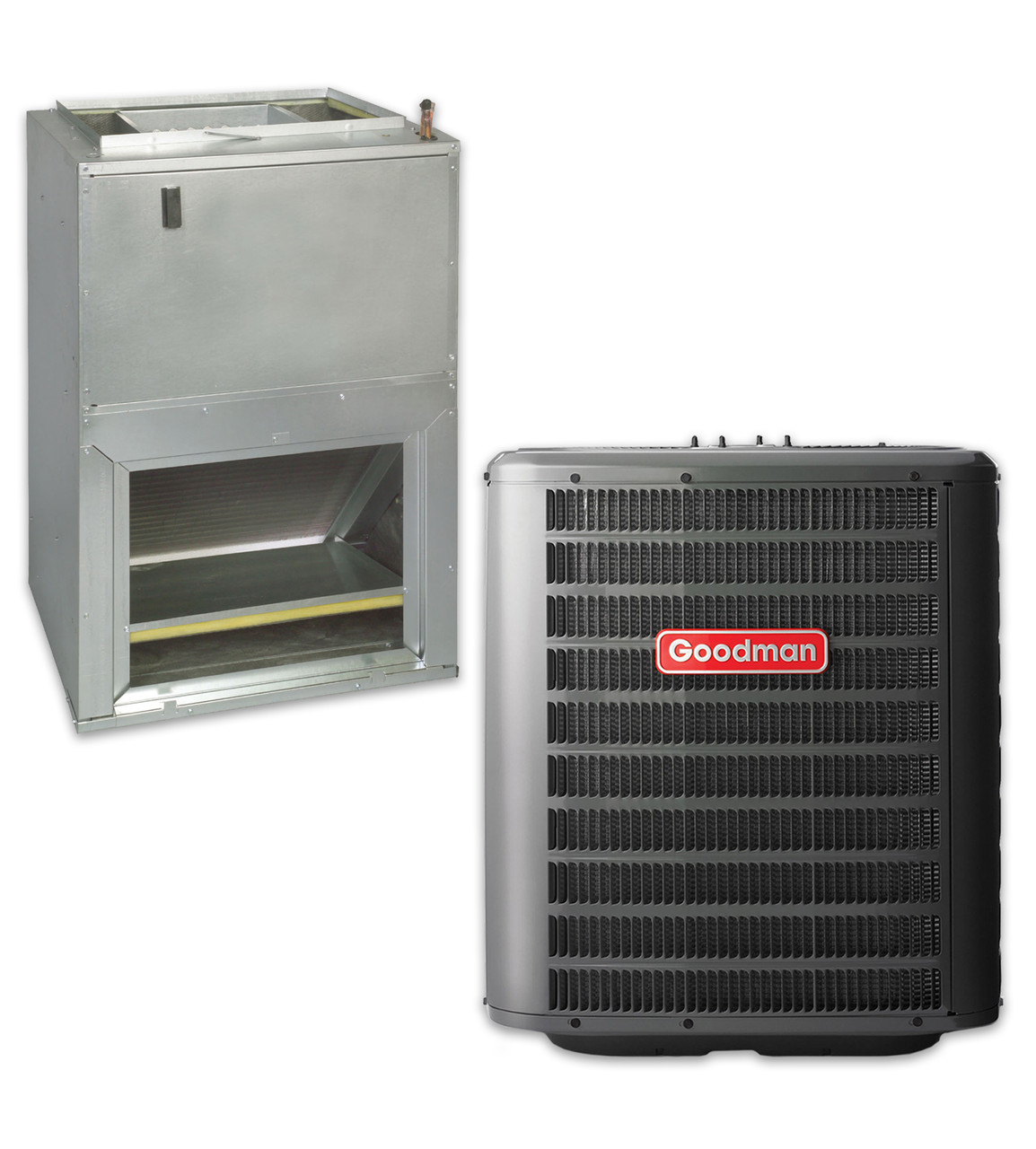

2.5 Ton Goodman 15.2 SEER2 R32 Central Wall Mount System GLXS4BA3010, AWST30LU13 Apartment/Condo Type

This system moves up to Goodman’s large-chassis wall mount air handler. It pairs the 30,000 BTU/h GLXS4BA3010 R-32 condenser with the AWST30LU13 for an AHRI-certified 15.2 SEER2 (#215214934), a higher rating than the same condenser earns with the standard AMST30BU1300 air handler. It’s designed for larger condos, three-bedroom apartments and townhomes where the air handler sits in a wall closet. The AWST30LU13 uses a 24″ cabinet with front return, a larger 18″ x 20″ x 1″ filter and factory heat options up to 10 kW. It’s a smart upgrade for owners and property managers who want more capacity and efficiency without moving the air handler out of the wall.

Is a 2.5 Ton Air Conditioning System the Right Size?

With 30,000 BTU/h of nominal cooling, 2.5 tons typically serves larger condos, three-bedroom apartments and townhomes, often around 1,200-1,500 sq. ft. as a loose benchmark. Multi-level townhomes and top-floor units with vaulted ceilings tend to land at the higher end of that range.

Before stepping up from 2 tons, measure the wall closet. The AWST30LU13 uses the larger 24″ chassis, so the opening, return grille and service access must fit the bigger cabinet. Window exposure, roof exposure and occupancy should guide the final sizing, confirmed with a load calculation.

Ideal for: Three-bedroom apartments, larger condos and townhome units with wall-closet air handlers that need more capacity than a 2 ton system.

Need more capacity? Step up to the 3 Ton Goodman 15.2 SEER2 R32 Central Wall Mount System GLXS4BA3610, AWST36LU13, which uses the same large chassis.

Recommended home sizes are general guidelines only. Actual system requirements depend on insulation, climate, windows, ductwork, occupancy and a proper load calculation. Request free sizing assistance, contact Budget Heating, or call 813-885-7999.

What’s Included

Outdoor Condensing Unit	GLXS4BA3010 – 2.5 Ton R32 Split System Air Conditioner
Indoor Air Handler	AWST30LU13 Wall-Mount Air Handler (Large Chassis, 24″ Cabinet)
Application	Apartment/Condo Wall Mount Cooling System (Factory Electric Heat Optional)
Refrigerant	R-32
Compressor	Single-Stage Rotary Compressor with Advanced Copeland Technology
Metering Device	Factory-Installed Thermal Expansion Valve (TXV)
Electrical	208/230V, Single Phase, 60 Hz Condensing Unit – 15.0 MCA / 25A Max Overcurrent
Air Handler Electrical	208/230V, Single Phase – See Rating Plate (Varies with Heat Option)

The GLXS4BA3010 condenser measures 29″ x 29″ x 32″ at 155 lbs, with a 71 dBA sound rating and a 63 oz. factory R-32 charge. The AWST30LU13 steps up to the large chassis with a 24″ cabinet, front return only and an 18″ x 20″ x 1″ filter. It delivers roughly 934-1,180 CFM at 0.1″ static depending on speed tap. Compared with the ducted 2.5 ton GLXS4BA3010 system with the AMST30BU1300, this wall-mount match is rated higher at 15.2 SEER2. For heat pump heating, see the 2.5 ton Goodman R32 heat pump wall mount system.

Condensing Unit & Air Handler Features

GLXS4BA3010 Outdoor Condensing Unit

30,000 BTU/h nominal cooling capacity
Single-stage rotary compressor with Advanced Copeland Technology
71 dBA rated sound level
1/6 HP PSC condenser fan motor
63 oz. factory R-32 charge for 15 ft. of tubing
3/8″ liquid and 3/4″ suction sweat service valves
Factory-installed filter drier and high-pressure switch
Removable grille-style top compliant with UL 60335-2-40
500-hour salt-spray approved powder-paint finish
10-year parts limited warranty with online registration within 60 days

AWST30LU13 Wall-Mount Air Handler

Large chassis with 24″ cabinet width
Front return configuration
Built-in filter rack with 18″ x 20″ x 1″ filter included
R-32 refrigerant detection system with mitigation mode
Direct-drive, multi-speed motor with five speed taps
Factory-installed pull-type disconnect
Recessed or wall-hung with the offset hanging bracket
Bottom primary and secondary 3/4″ NPT drain connections
4″ fresh air knockouts on both sides
Factory pre-installed 5 kW, 8 kW or 10 kW heat available

Specifications & Manuals

GLXS4B Technical Specifications GLXS4 GLXS5 Installation Manual AWST Technical Specifications AWST R32 Installation Manual AWST Warranty Certificate GLSX GLZS Warranty Certificate

Documentation includes GLXS4BA3010 specifications, AWST30LU13 large-chassis dimensions and airflow tables, R-32 installation and mitigation guidance, and component warranty certificates.
