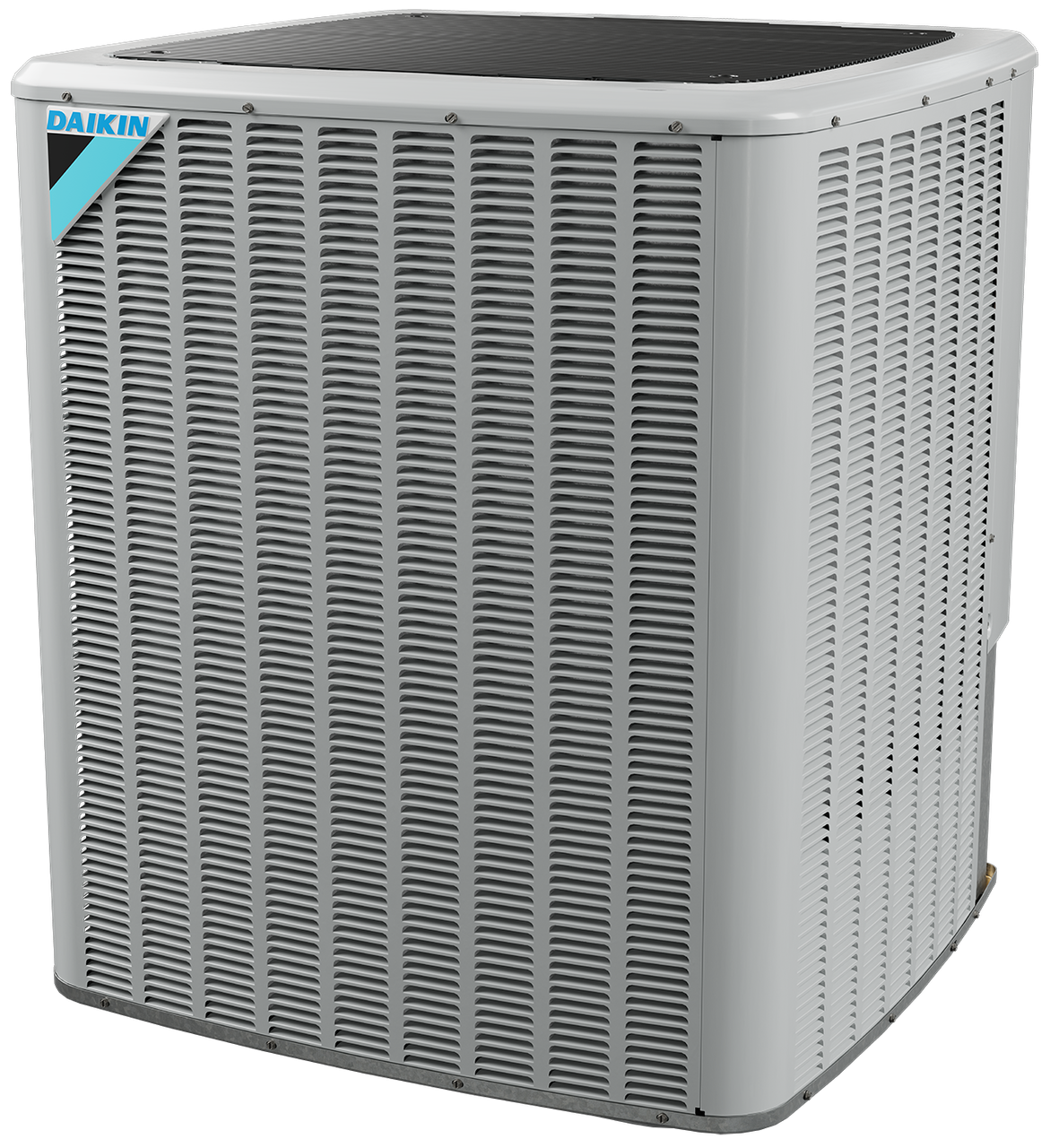

4 Ton R410A 208/230V 3 Phase Daikin Condenser, DX13SA0483
The Daikin DX13SA0483 is a 4-ton (48,000 BTU/h nominal) light-commercial split-system air conditioner condenser built for 208/230V, 3-phase power. Factory-charged with R-410A and driven by a single-stage scroll compressor, this 13 SEER outdoor unit is engineered for offices, retail spaces, restaurants, and other three-phase commercial buildings that need dependable, efficient cooling. Offered here as a closeout special while supplies last.
Is a 4-Ton Condenser the Right Size?
The DX13SA0483 delivers a nominal 4 tons of cooling (48,000 BTU/h; 46,000 BTU/h AHRI-rated), making it a fit for medium commercial zones typically in the 1,600-2,000 sq. ft. range, depending on the building.
Actual capacity needs depend on insulation levels, ceiling height, window area and sun exposure, occupancy, ventilation loads, and local climate. Because this is a three-phase unit, it is intended for commercial service with three-phase power rather than a standard residential single-phase panel. This condenser is the outdoor half of a split system and must be matched with a properly sized indoor evaporator coil or air handler and a compatible metering device.
Ideal for: Offices, retail stores, restaurants, and light-commercial buildings with 208/230V 3-phase power needing efficient 4-ton R-410A cooling.
Not sure on sizing or matching the indoor unit? Request free sizing assistance and we’ll help you pair the correct coil or air handler for a complete system.
Recommended applications are general guidelines only. Actual system requirements depend on insulation, building construction, ambient conditions, occupancy, and load. Request a quote, contact Budget Heating, or call 813-885-7999.
DX13SA0483 Specifications
| Outdoor Unit | DX13SA0483 – 13 SEER Light-Commercial Split-System AC Condenser |
|---|---|
| Nominal Cooling Capacity | 4 Tons (48,000 BTU/h); 46,000 BTU/h AHRI-rated |
| Efficiency | 13 SEER / 11.00 EER |
| Refrigerant | R-410A (factory holding charge 97 oz.; precharged for 15 ft of 3/8″ liquid line) |
| Compressor | Single-Stage Scroll (RLA 13.1 / LRA 83.1) |
| Condenser Fan Motor | 1/4 HP |
| Electrical | 208/230V, 3 Phase, 60 Hz |
| MCA / MOP | 17.6 A / 30 A max |
| Refrigerant Connections | Liquid line 3/8″ O.D.; suction line 1-1/8″ O.D. (7/8″ service valve – installer supplies 7/8″-to-1-1/8″ adapter); sweat |
| Sound Level | 76 dB |
| Operating Range (Cooling) | 65-115°F (to 55°F with low-ambient baffle) |
| Dimensions (H x W x D) | 36-1/4″ x 29″ x 29″ |
| Weight | 190 lbs |
| Certifications | AHRI Certified, ETL Listed; meets ASHRAE 90.1-2010 (Table 6.8.1B) |
The DX13SA0483 ships as an outdoor condensing unit only and is designed to be matched with a suitable indoor coil or air handler and metering device to form a complete 4-ton commercial split system.
Condenser Features
Standard Features
- Energy-efficient single-stage scroll compressor
- Factory-installed filter drier
- Copper-tube / enhanced aluminum-fin condenser coil
- Service valves with sweat connections and easy-access gauge ports
- Contactor with lug connection
- Ground lug connection
- Factory-charged for R-410A refrigerant
- Meets ASHRAE Standard 90.1-2010 (Table 6.8.1B) performance
- AHRI Certified
- ETL Listed
Cabinet Features
- Innovative louvered sound-control top design
- Steel louver coil guard
- Heavy-gauge galvanized-steel cabinet
- Attractive Nickel Gray powder-paint finish
- Top and side maintenance access
- Single-panel access to controls
- Space provided for field-installed accessories
- Meets 2010 Florida Building Code wind-integrity requirements when properly anchored
- Anchor bracket kits available
- Compact 29″ x 29″ footprint
Specifications & Manuals
Product documentation includes technical specifications, installation instructions, replacement-parts information, and the submittal data sheet to assist with equipment selection, installation, and service.
