1.5 Ton EcoTemp 15.5 SEER2 R454B Central System W5A5S18AKAWA, WCHL185AA

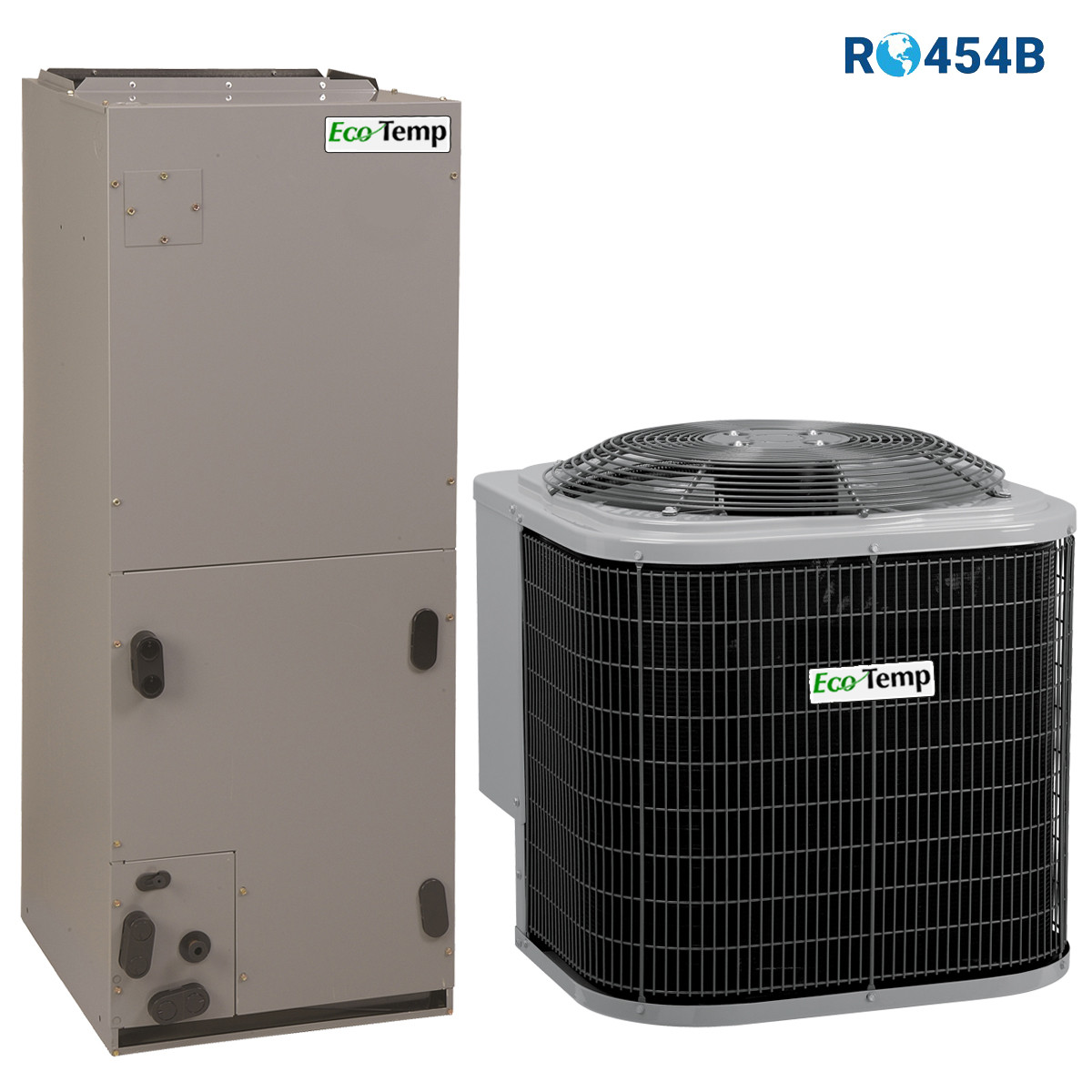

This EcoTemp system pairs the W5A5S18AKAWA single-stage condenser with the WCHL185AA multipoise ECM air handler, AHRI certified at 15.5 SEER2 (#214877378). It runs on R-454B, a low-GWP A2L refrigerant, and the air handler has a refrigerant leak detection and dissipation system and a factory-installed TXV. It’s cooling only, with optional 5, 8 or 10 kW electric heat kits.
Is a 1.5 Ton Air Conditioning System the Right Size?
A 1.5 ton system usually suits small homes, condos and additions of roughly 700-1,000 sq. ft. as a rough guide.
Small spaces are easy to oversize, which leads to short cycling and poor humidity control. A Manual J load calculation confirms 1.5 tons is enough.
Ideal for: Condos, small apartments, mobile and manufactured homes and room additions.
Need more capacity? Step up to the 2 Ton EcoTemp 16 SEER2 R454B Central System W5A5S24AKAWA, WCHL245AB for a larger load.
Recommended home sizes are general guidelines only. Actual system requirements depend on insulation, climate, windows, ductwork, occupancy and a proper load calculation. Request free sizing assistance, contact Budget Heating, or call 813-885-7999.
What’s Included
| Outdoor Condensing Unit | W5A5S18AKAWA – 1.5 Ton EcoTemp R-454B Air Conditioner |
|---|---|
| Indoor Air Handler | WCHL185AA Multipoise ECM Air Handler (14-5/16″ Wide) |
| Application | Cooling-Only Central Air Split System (Electric Heat Kit Optional) |
| Refrigerant | R-454B (Low-GWP A2L Refrigerant) |
| Compressor | Single-Stage Scroll Compressor |
| Metering Device | Factory-Installed R-454B TXV at Indoor Coil |
| Electrical | 208/230V, Single Phase, 60 Hz Condensing Unit – 10.9 MCA / 15A Max Fuse or Breaker |
| Air Handler Electrical | 208/230V, Single Phase – 3.6 MCA / 15A Max Overcurrent (Without Electric Heat) |
The W5A5S18AKAWA condenser is 31-11/16″ tall on a 31-3/16″ square base and ships at 149 lbs. The WCHL185AA air handler is 42-11/16″ tall, 14-5/16″ wide and 22-1/16″ deep and ships at 120 lbs. Complete the install with compatible thermostats and copper line sets and fittings.
Condensing Unit & Air Handler Features
W5A5S18AKAWA Outdoor Condensing Unit
- 18,000 BTU/h nominal cooling capacity
- Single-stage scroll compressor (8.3 RLA, 41.5 LRA)
- 72 dBA sound power rating
- 1/12 HP direct drive condenser fan, vertical discharge
- 3/8″ liquid and 3/4″ vapor service valve connections
- Factory charged with 4.2 lb R-454B for 15 ft of line set
- Long-line capable up to 250 ft total equivalent length
- Low ambient cooling down to 0°F with accessory kit
- Internal pressure relief valve, internal thermal overload and filter drier
- 5-year parts limited warranty, 10 years with registration within 90 days
WCHL185AA Multipoise ECM Air Handler
- Multipoise cabinet: upflow or horizontal left, downflow with kit
- Refrigerant leak detection and dissipation system
- 1/3 HP multi-tap ECM blower motor with five speed taps
- 525 CFM nominal airflow
- Factory-installed R-454B TXV
- Grooved tube, louvered fin aluminum slope coil
- 3/4″ FPT condensate connection
- R-4.2 insulation with vapor barrier, prepainted steel cabinet
- Filter rack fits a 13″ x 20″ filter
- Field-installed electric heat kits, 5, 8 or 10 kW
Specifications & Manuals
Documentation includes the W5A5S single-stage R-454B condenser product specifications and the WCHL ECM fan coil product data, including dimensions, electrical data, airflow tables and heater kits.
