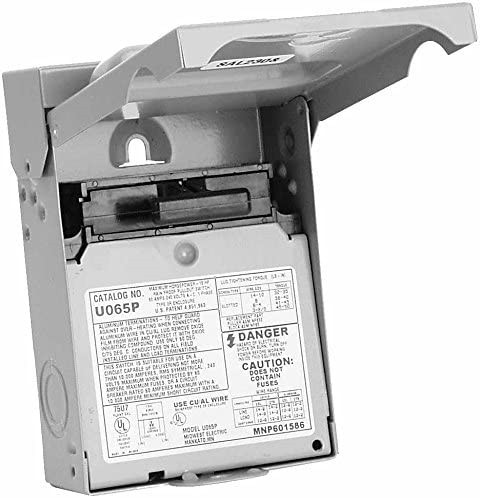

A/C Disconnect 60 Amp Non-Fused Pull-Out Style
A heavy-duty 60 amp non-fused pull-out disconnect built for outdoor HVAC service shutoff. Housed in a NEMA 3R rainproof, powder-coated steel enclosure, this top-opening disconnect box gives HVAC installers, contractors, and service technicians a fast, code-compliant way to cut power to air conditioning condensers and heat pumps at the equipment.
Is a 60 Amp Non-Fused Disconnect the Right Choice?
A non-fused disconnect provides a local, visible means of disconnect at the outdoor unit without adding overcurrent protection at the box itself. It’s the right fit when the circuit’s overcurrent protection is already handled upstream at the panel or breaker, and you simply need a code-required service disconnect within sight of the equipment.
The 60 amp rating covers the maximum load this disconnect is designed to carry. Choosing the correct disconnect depends on the equipment’s minimum circuit ampacity and maximum overcurrent protection rating, the conductor size, and whether local code calls for a fused or non-fused device. Always confirm the requirement against the unit’s nameplate and the installing jurisdiction.
Ideal for: Residential and light-commercial AC condensers, heat pumps, and other outdoor HVAC equipment rated at or below 60 amps that require a local service disconnect.
Need a three-phase option? Step up to the Square D 60A 3-Phase Non-Fusible Disconnect for three-phase commercial installations.
Recommended applications are general guidelines only. Actual requirements depend on equipment nameplate ratings, conductor sizing, and local electrical code. Request a quote, contact Budget Heating, or call 813-885-7999.
What’s Included
| Type | 60 Amp Non-Fused Pull-Out AC Disconnect |
|---|---|
| Max Amperage | 60A |
| Enclosure Rating | NEMA 3R (Rainproof) – Outdoor Use |
| Construction | Powder-Coated Steel |
| Conductor Compatibility | Copper or Aluminum (Copper-Rated Load Lugs) |
| Access | Top-Opening Lift-Up Cover with Lockable Latch |
| Knockouts | Back, Bottom, and Sides |
| Listing | UL Listed |
| Dimensions | 8-13/16″ H × 5-7/16″ W × 3-3/16″ D (225 × 138.5 × 80 mm) |
Each disconnect ships individually boxed and ready to mount beside the outdoor unit for a clean, code-compliant service installation.
Enclosure & Electrical Features
Enclosure & Construction
- NEMA 3R rainproof enclosure rated for outdoor installation
- Powder-coated steel resists corrosion and weather exposure
- Top-opening lift-up cover for convenient wiring access
- Lockable latch supports lockout/tagout and added security
- Knockouts on back, bottom, and sides for flexible conduit entry
- Compact footprint mounts easily beside condensing units
Electrical & Installation
- 60A maximum load rating
- Non-fused pull-out design for fast service shutoff
- Copper-rated load lugs accept copper or aluminum conductors
- UL Listed for code-compliant installations
- Pull-out block fully removes power for safe maintenance
- Purpose-built as a service disconnect for AC and heat pump systems
Specifications & Manuals
Product documentation includes technical specifications to assist with equipment selection, installation, and service.
