Power disturbances damage air conditioner compressors without warning. Let the Compressor Defender? take the hit so air conditioners are never interrupted. The all-in-one Compressor Defender device protects compressors and circuit boards in residential and light commercial applications from brownouts, surges, and short cycles. The protective device can be installed inside a condensing unit or on an outdoor compressor. It is also compliant with the AHRI standard 110-1012.

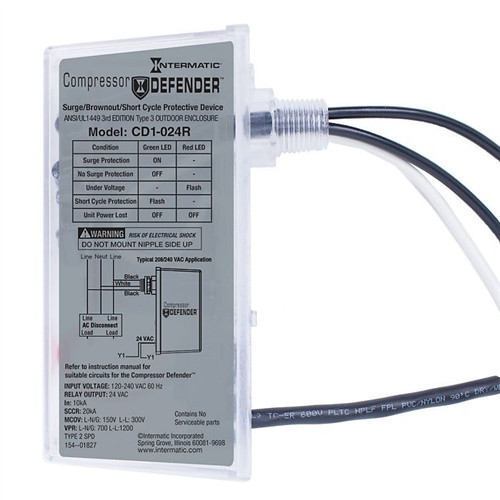

Model CD1-024R Compressor Defender? Brownout, Surge, and Short Cycle Protection
The Compressor Defender? protects HVAC Compressors (Scroll & Reciprocating), and the electronics inside central air conditioners, heat pumps, light commercial packaged rooftop units, and mini-splits from under/overvoltage conditions, surge events, and system short cycling caused from AC power interruptions.
Model Overview:
- Surge, brownout, and short cycle protection with 120, 208, and 240 VAC loads.
- LED indicators provide real-time status updates for quick and easy troubleshooting.
- For use inside condensing units or externally on disconnects.
- Complies with ANSI/AHRI Standard 110-2012 Range B2 for voltage drop protection.
- Auto-sense voltage technology 120-240 VAC universal input voltage.
- Meets ANSI/UL 1449 3rd edition requirements.
- Type 3 weatherproof and UV resistant enclosure.
- State-of-the-art TPMOV? technology.
Specifications:
- Input Voltage: 120 to 240 VAC, Single Phase 60Hz.
- Thermostat Relay: Normally Closed Relay, 24 VAC.
- SPD Type: Type 2 SPD.
- Control Output Current Rating: 2A @ 24 VAC, isolated N.C. contact.
- Max Continuous Overvoltage (MCOV): L-N/G: 150V, L-L: 300V.
- Voltage Protection Rating (VPR): L-N/G: 700, L-L:1200.
- Nominal Discharge Rating: In (10kA).
- SCCR (Short Circuit Current Rating): 20kA.
- Undervoltage Response Time: 3 line cycles
- Short Cycle Delay: 3 min
- Operating Temp: -40?F to 158?F (-40?C to 70?C)
- Enclosure: Type 3 Outdoor
- Product Warranty: Limited 3 year
- Connected Equipment Warranty: 3 year/$7,500
