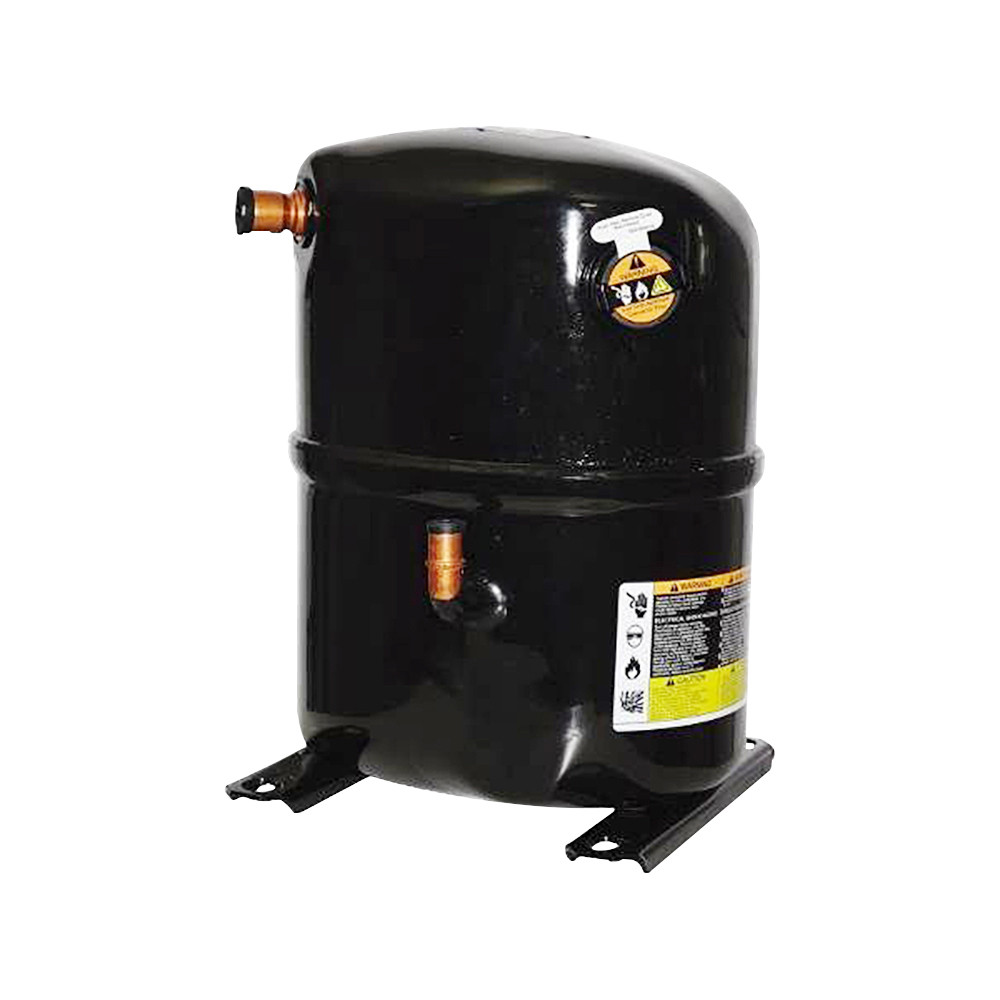

Copeland CR30K6E-PFV-875 2.5 Ton R22 Reciprocating Compressor
The Copeland CR30K6E-PFV-875 is a hermetically sealed reciprocating compressor designed for residential and light commercial air conditioning applications. This compressor has a nominal capacity of 2.5 tons and is designed for compatible systems using R22 or R407C refrigerant.
Operating on 208/230 volts, single phase, 60 Hz, the CR30K6E-PFV-875 is commonly used as a replacement compressor in compatible split systems, packaged air conditioners, heat pumps and other HVAC equipment. It features a 3/4-inch suction stub, a 1/2-inch discharge stub and a factory POE oil charge.
The compressor is rated at approximately 30,000 BTU per hour under nominal application conditions. Actual compressor capacity will vary based on evaporating temperature, condensing temperature, refrigerant and system operating conditions.
Product Features
- Genuine Copeland CR Series compressor
- Hermetic reciprocating compressor design
- Nominal capacity: 2.5 tons
- Approximately 30,000 BTU capacity class
- Compatible with approved R22 and R407C applications
- 208/230V, single phase, 60 Hz
- 3/4-inch suction stub connection
- 1/2-inch discharge stub connection
- Factory charged with POE compressor oil
- Internal motor overload protection
- Designed for air conditioning and compatible heat pump applications
Technical Specifications
| Manufacturer | Copeland |
|---|---|
| Model Number | CR30K6E-PFV-875 |
| Compressor Type | Hermetic Reciprocating |
| Application | Air Conditioning / Compatible Heat Pump Applications |
| Nominal Tonnage | 2.5 Ton |
| Nominal Capacity | Approximately 30,000 BTU |
| Refrigerant | R22 / R407C |
| Voltage | 208/230V |
| Phase | Single Phase |
| Frequency | 60 Hz |
| Rated Current | 12.25 Amps |
| Locked Rotor Amps | 82 Amps |
| Suction Connection | 3/4 in. Stub |
| Discharge Connection | 1/2 in. Stub |
| Oil Type | POE |
| Factory Oil Charge | 45 oz. |
| Run Capacitor | 35 MFD, 370V |
| Dimensions | 10.23 in. L x 9.65 in. W x 13.81 in. H |
| Mounting Pattern | 7.5 in. x 7.5 in. |
| Net Weight | Approximately 66 lbs. |
Important Compatibility Information
Before ordering, verify that CR30K6E-PFV-875 is the correct replacement for your equipment. Compressor selection must be based on the complete model number, refrigerant, voltage, phase, capacity, mounting configuration and refrigerant connection sizes. Tonnage alone should not be used to select a replacement compressor.
Electrical components, mounting hardware, start components, run capacitors, relays, crankcase heaters and other accessories are not included unless specifically stated in the product listing.
Professional installation is required. Refrigerant recovery, brazing, evacuation, electrical testing, charging and system startup must be completed by a qualified HVAC technician in accordance with applicable laws, codes and manufacturer requirements.
