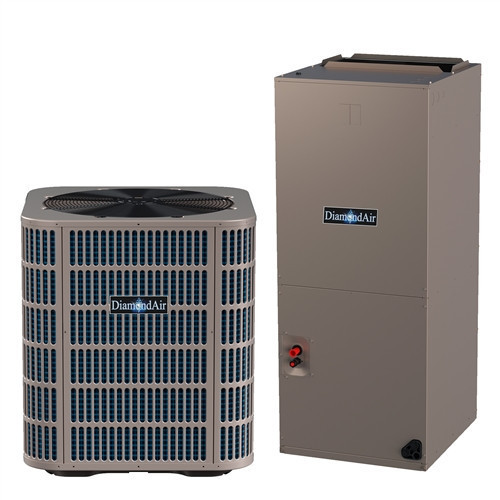

Name: 1.5 Ton DiamondAir 14.3 SEER2 R410A Heat Pump System D1418HCL2, D1418HAEAL2 (T)
Brand: Budget Heating
SKU: 32
Availability: InStock

1.5 Ton DiamondAir 14.3 SEER2 R410A Heat Pump System D1418HCL2, D1418HAEAL2 (T)

Size chart

Clothing Size Conversion Chart
Category	US	EU	UK	Chest (in)	Waist (in)	Hips (in)
Men	XS	44	34	32-34	26-28	33-35
	S	46	36	34-36	28-30	35-37
	M	48	38	38-40	32-34	39-41
	L	50	40	42-44	36-38	43-45
	XL	52	42	46-48	40-42	47-49
Women	XS	32	6	31-32	24-25	33-34
	S	34	8	33-34	26-27	35-36
	M	36	10	35-36	28-29	37-38
	L	38-40	12-14	37-39	30-32	39-41
	XL	42	16	40-42	33-35	42-44
Youth	XS	128	7	26-28	23-24	26-28
	S	134	8	28-30	24-25	28-30
	M	140	10	30-32	25-26	30-32
	L	146	12	32-34	26-27	32-34
	XL	152	14	34-36	27-28	34-36

Pants Size Conversion Chart
Category	US	EU	UK	Waist (in)	Hip (in)	Inseam (in)
Men	28	44	28	28	34	30
	30	46	30	30	36	31
	32	48	32	32	38	32
	34	50	34	34	40	33
	36	52	36	36	42	34
Women	0	32	4	24	34	30
	2	34	6	25	35	30
	4	36	8	26	36	31
	6	38	10	27	38	32
	8	40	12	28	40	32

Shoes Size Conversion Chart
Category	US	EU	UK	Foot Length (in)
Men	6	39	5.5	9.25
	7	40	6.5	9.625
	8	41	7.5	10
	9	42	8.5	10.25
	10	43	9.5	10.625
	11	44	10.5	11
	12	45	11.5	11.25
	13	46	12.5	11.625
Women	5	35	2.5	8.5
	6	36	3.5	8.875
	7	37	4.5	9.25
	8	38	5.5	9.625
	9	39	6.5	10
	10	40	7.5	10.25
	11	41	8.5	10.625
	12	42	9.5	11
M (Unisex)	5	37	4.5	8.75
	6	38	5.5	9
	7	39	6.5	9.5
	8	40	7.5	10
	9	41	8.5	10.25
	10	42	9.5	10.625
	11	43	10.5	11
	12	44	11.5	11.25

78 People watching this product now!

DiamondAirhas been providing reliable, quality built HVAC equipment toNorth America for well over a decade. The 14 Series SEER2 heat pumpcomplete systems achieve 14.3 efficiency rating. With a strong cabinetdesign,state-of-the-art engineering and competitive pricing, DiamondAircontinues to deliver ‘Comfort & Quality so you can rest easy’!

Heat Pump Condenser

Standard Features
* R410A chlorine-free refrigerant.
* Energy-e fficient compressor.
* Internally protection against high temperature motor overload conditions.
* High quality condenser with inner-groove copper tube and aluminum fin.
* Service valves with sweat connections and easy-access gauge ports.
* Factory-installed high pressure switch
* AHRI certified and ETL listed
* Optional drier filter as accessory.

Cabinet Features
* Unique sound control top design.
* Compact design, easy installation and transportation.
* Powder-painted galvanized steel cabinet.
* Wire fan discharge grille.
* Steel louver coil guard

D14 Air Handler

Standard Features:
* Available for cooling and heat pump applications.
* Multi-speed PSC blower motor.
* All-aluminum tubes & fins.
* Common Factory-sealed cabinet certified to achieve 2% or less leakage rate at 1.0 inch water column.
* Multi-position Installation.
* Horizontal and vertical condensate drain pans standard;
* Blower and coil easy slide out for ease of maintenance.
* Field Installed heater kits are optional: 5kW, 7.5kW, 10kW, 15kW, 20kW.
* AHRI Listed & ETL Certified.
