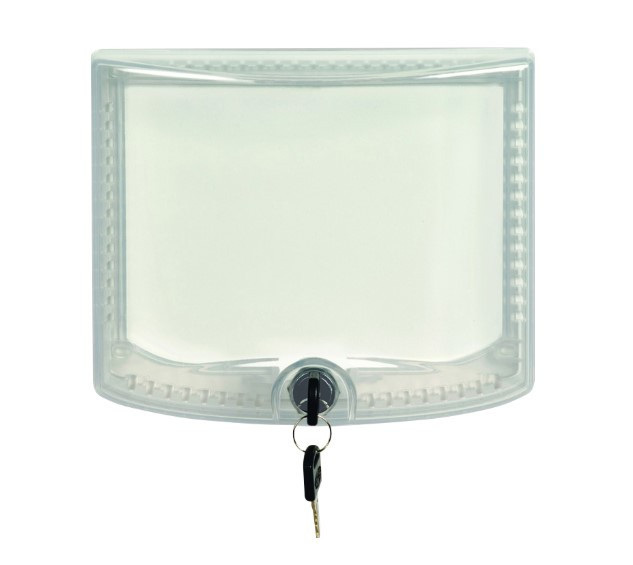

Braeburn 5970 Universal Thermostat Guard with Key Lock, Clear Plastic Thermostat Lock Box
The Braeburn 5970 Universal Thermostat Guard is a clear, locking thermostat cover that stops unauthorized temperature changes and protects the thermostat from damage. It fits thermostats up to 7.3″ wide × 5.25″ high × 1.8″ deep. It works on new installs or over an existing thermostat, usually without taking the thermostat off the wall. A tumbler lock and two keys keep control with the manager, owner or maintenance staff. It is built for offices, lobbies, schools, hospitals, restaurants, supermarkets, convenience stores and rental properties.
Will the Braeburn 5970 Fit Your Thermostat?
Braeburn calls the 5970 universal because it fits nearly any wall thermostat up to 7.3″ (185 mm) wide × 5.25″ (133 mm) high × 1.8″ (46 mm) deep. That covers most standard digital, programmable and non-programmable models. Before ordering, measure your thermostat’s width, height and depth, including any faceplate or door that sticks out. The 1.8″ depth is the dimension most often overlooked.
Your installation type decides which parts you use. On an existing thermostat, only the clear base and locking cover go on the wall. Some thermostats need to come off their sub-base first. On a new install, you can add the included opaque wall plate behind the thermostat to cover old screw holes, paint lines or marks from a previous thermostat.
Ideal for: Offices, lobbies, schools, hospitals, restaurants, supermarkets, convenience stores, rental units and any shared space where people shouldn’t be able to change the setpoint.
Need a thermostat too? Browse our programmable thermostats and non-programmable thermostats, and check the dimensions against the 5970’s 7.3″ × 5.25″ × 1.8″ limit.
Fit depends on your thermostat’s overall dimensions. Always verify width, height and depth before ordering. Request free product assistance, contact Budget Heating, or call 813-885-7999.
What’s Included
| Guard Cover | Clear Plastic Hinged Cover |
|---|---|
| Base | Clear Plastic Ring Base |
| Wall Plate | Opaque Plastic Wall Plate (for new installations) |
| Lock | Tumbler Lock with Two Keys |
| Hardware | Mounting Screws, Wall Anchors and Wall Plate Template |
| Fits Thermostats Up To | 7.3″ W × 5.25″ H × 1.8″ D (185 × 133 × 46 mm) |
| Model Number | Braeburn 5970 |
| Warranty | 1-Year Limited (when installed by a professional contractor) |
Everything needed to lock down a wall thermostat comes in one box. The clear ring base mounts to the wall around the thermostat with four screws and anchors. The hinged cover hooks over the top of the base and locks at the bottom with the tumbler key. Because the cover is clear, occupants can still read the display and current temperature while the controls stay out of reach.
Guard & Mounting Features
5970 Locking Guard Cover
- Clear plastic keeps the thermostat display readable
- Tamper-resistant design blocks unauthorized setpoint changes
- Durable plastic protects the thermostat from bumps and damage
- Hinged cover lifts off the top edge of the base for service access
- Tumbler lock with two keys included
- Key can only be removed in the locked position, so the cover can’t be left unlocked by mistake
- Slim, contemporary profile suits offices and commercial interiors
- Fits thermostats up to 7.3″ W × 5.25″ H × 1.8″ D
- Replacement keys available through Braeburn customer service
- Braeburn lists it as a replacement for over 100 competitive guard models
5970 Base & Wall Plate
- Clear ring base mounts around an existing thermostat, usually without removing it
- Four screws and anchors included for a secure wall mount
- Curved bottom edge orients the base correctly
- Opaque wall plate covers marks and old holes on new installs
- Wall plate has a wire opening for routing 18/8 thermostat wire
- Wall plate works with a wide range of commercial thermostat sub-bases
- Wall plate template included for marking 5/32″ mounting holes
- Works for new and existing thermostat applications
- Pairs with thermostats such as the Honeywell T6 Pro TH6320U2008 (verify dimensions before ordering)
- Backed by a Braeburn 1-year limited warranty
Specifications & Manuals
Documentation includes the Braeburn 5970 specification sheet with fit dimensions, included components and a cross-reference of competitive thermostat guards, plus the user manual with installation steps for new and existing thermostats.
